Schmidt |Street washer|eCityJet 3030
Electric drive
The eCityJet 3030 is characterised by a fully electric drive. The heart of the drive is a high voltage, 75 kWh. battery which consists of two individual battery packs. A battery management system (BMS) continuously monitors and controls the battery, which consists of high-quality components, the charging and discharging processes and the temperature, thus contributing to a long service life and the greatest possible safety. The powerful batteries allow operating times of up to 10 hours without recharging.
An integrated on-board quick charger ensures complete recharging in just four hours.
The drives of all main functions - traction drive, blower drive, hydraulic pump drive and air conditioning of the driver's cab - have been electrified. The electric drive offers higher efficiency, optimum power characteristics and high performance with low maintenance requirements.
Only an electric motor, which is directly connected to the rear axle, is used for the drive and gives speeds of up to 40 km/h, while the noise level is many times lower than that of a diesel vehicle. An electric parking brake system with hill start assistance guarantees safe and comfortable driving.
Washing technology

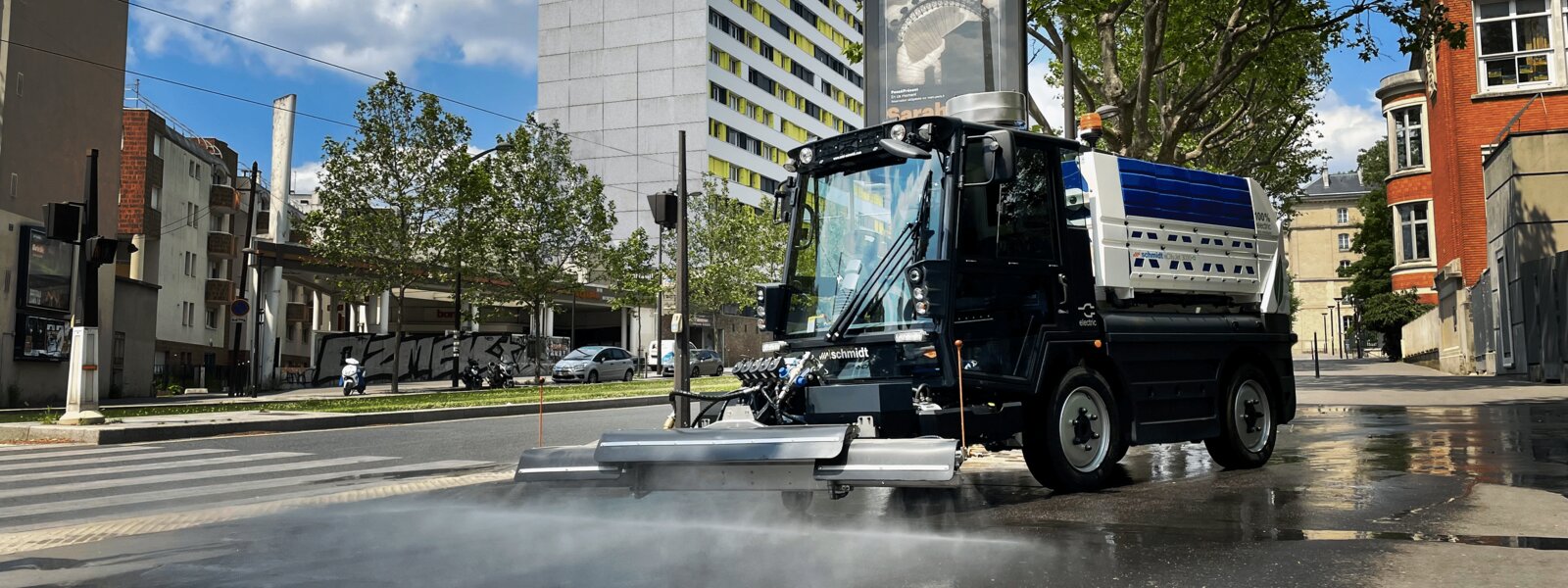

The eCityJet 3030 cleans surfaces with water and high pressure, removing even stubborn dirt. In particularly dry climates, the eCityJet 3030 also ensures that dust is quickly and easily removed. At the same time, the cleaning water rinses the sewerage system, which prevents standing waste water and associated odours.
- Water pump: The eCityJet 3030 is available with a high performance water pump with up to 70 litres/min and up to 60 bar. This is driven by an efficient electric motor with almost infinitely variable water flow control from the cabin.
- Water tank: The water volume of the eCityJet 3030 is up to 1500 l, depending on the equipment variant. The modular water tank system, consisting of UV-resistant and impact-resistant polyethylene plastic tanks, is equipped with baffles as standard. Filling is via a C-connection with water suction filter and free flow section. The water tank system can be tilted backwards for optimum accessibility during maintenance.
Spray bar
Cleaning is very efficient thanks to the flexibly-controlled high-pressure wash bar with 30° swivel angle. The driver can control the washing beam individually and intuitively from the cab. Height adjustment and swivelling are hydraulic. A reduction of the spray mist is guaranteed by the spray guard fitted as standard. A telescopic wash bar is available as an option, which significantly increases the area output. The lateral telescope on the right and left is 500mm each. In addition, the washing beam can be equipped with side, flat spray nozzles on the right and left, which guarantees greater flexible use.
Ergonomics and comfort
The spacious cabin is equipped with high quality noise and vibration insulation (72 dB(A)). The front windscreen, which extends down to the ground, provides an optimum view of the wash beam. The excellent all-round visibility contributes to a pleasant working environment and safe operation in traffic.
The standard, powerful air conditioning system creates a pleasant and cool working temperature even when hot outside. Fresh air is sucked in and filtered at the rear of the cab via a dual-purpose pollen filter.
All functions of the washing unit are controlled via the door control panel with various joysticks and push buttons. The most important information is visible at a glance on the colour display in the roof console. In addition, a mechanic can make machine-specific settings in the display. With the aid of the onboard diagnosis system, any faults can be localised quickly and efficiently.
Smooth steering via the adjustable steering column, cruise control, minimal pedal forces, a comfort driver's seat plus operating and control instruments in an optimum grip area create a modern, ergonomic workplace.
Modern vehicle technology
The hot-dip galvanising of the entire vehicle frame and important steel components provides high-quality corrosion protection. The mechanical suspension package, perfectly matched to the machine, ensures safe and comfortable car-like driving with reduced maintenance.
The switchable all-wheel steering which is monitored by means of steering angle sensors, makes tight turning manoeuvres possible and is user-friendly and safe. A hydraulic dual-circuit brake system with disc brakes front and rear is fitted as standard.
Wide range of options
- Telescopic wash bar
- Side nozzles
- High-pressure hand lance with automatic hose reel with 18 metre hose
- 360° swivelling roof boom with hose reel with 20 metre hose
- Cleaning agent dosing unit
- High pressure hose reel in the rear of the vehicle with a working pressure of up to 110 bar at 15 l/min
