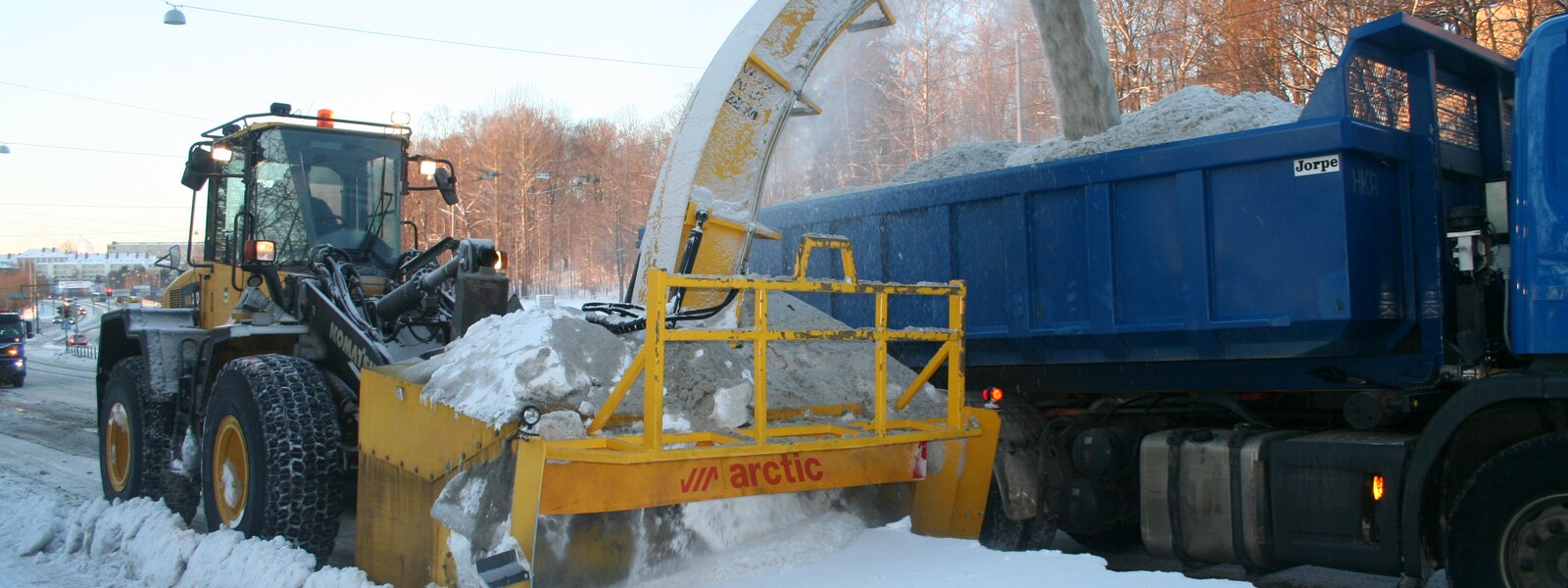

The SRM is a high-performance snow loader with its own independent diesel engine designed for mounting on wheel loaders and primarily for municipal and urban use. Snow collection, milling and effective clearance is guaranteed with its carefully designed, sturdy drum, blowing tube and snow visor.

Le contenu n'est pas disponible dans la langue demandée. Le contenu est disponible en: English, Русский, Italiano, Polski, Español

Arctic ｜Snow removal machine｜SRM

Product booklet

Working drum

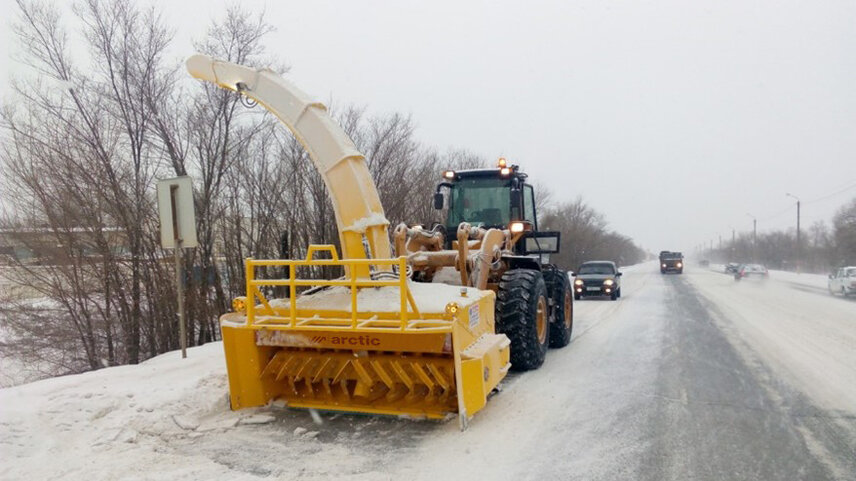

The SRM snow loader has a large drum with several rows of throwing blades, which cut and crush snow into a uniform mass and direct it to the center of machine and into the blowing tube. In addition to flat directed blades there are additional cylindrical blades in the center which increase the speed and performance of the machine.

The single-stage logic of the machine makes it ideal for working in tough conditions with obstacles and even unexpected rubbish in the snow.

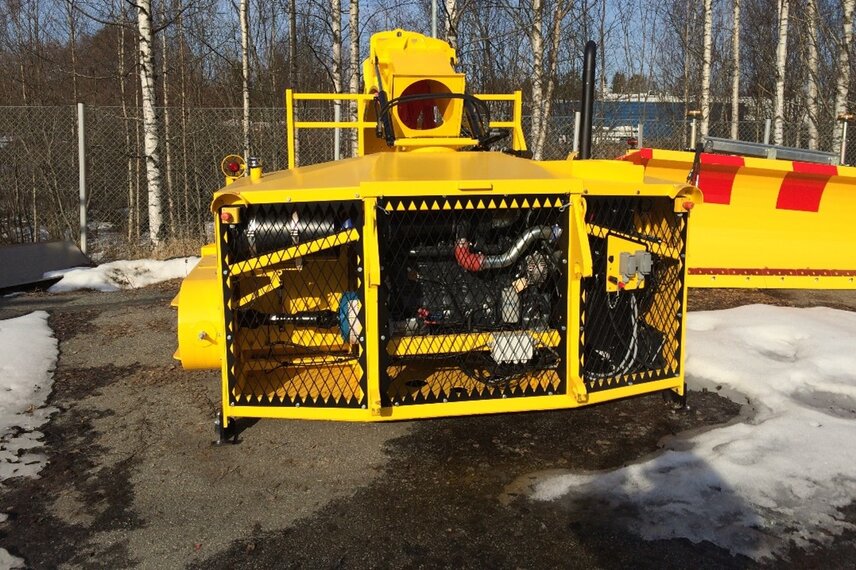

Engine

The SRM’s systems are run by a reliable 129kW/175hp diesel engine with low maintenance costs and long lifecycle. The engine delivers high torque at relatively low rpms which ensures high performance and low fuel consumption.

An electric pre-heating system helps start the engine at very low temperatures, reducing fuel consumption and pollution.

Optionally, the snow loader can be equipped with an additional water separator filter.

Safety systems

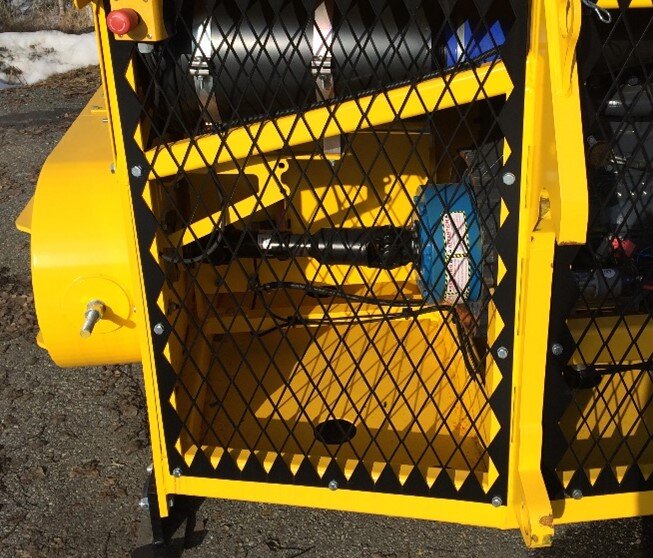

The SRM offer several stages of safety protection. Firstly, the throwing blades have safety bolts and detach into the drum on meeting any significant obstacle. Secondly, the planetary gear has a safety axle designed to break on encountering an insurmountable obstacle and immediately stop the drum. Thirdly, there are driving belts designed to break in case of the drum overloading. And last but not least, a centrifugal clutch prevents overloading. All these systems protect the engine and ensure the snow loader continues to operate under the most severe conditions.

Suitability & attachments

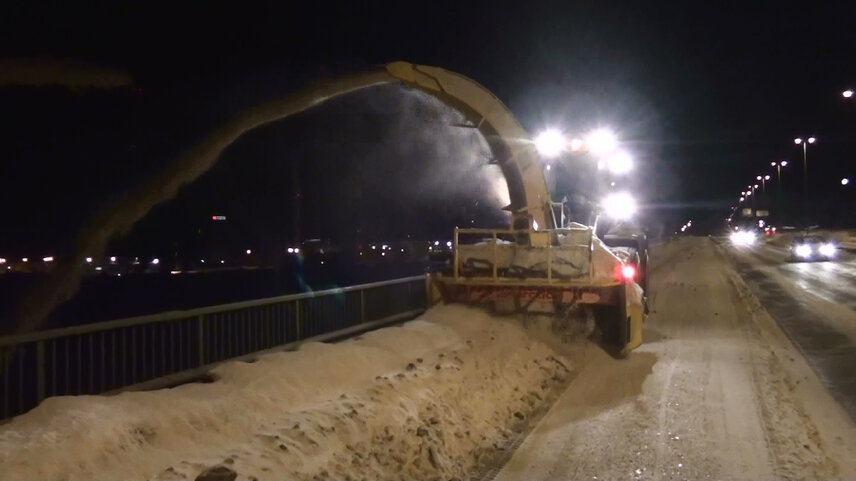

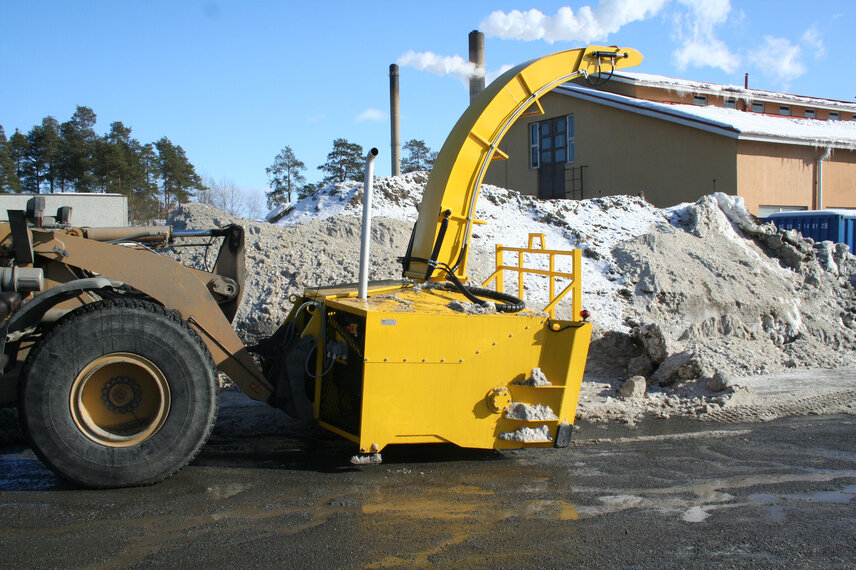

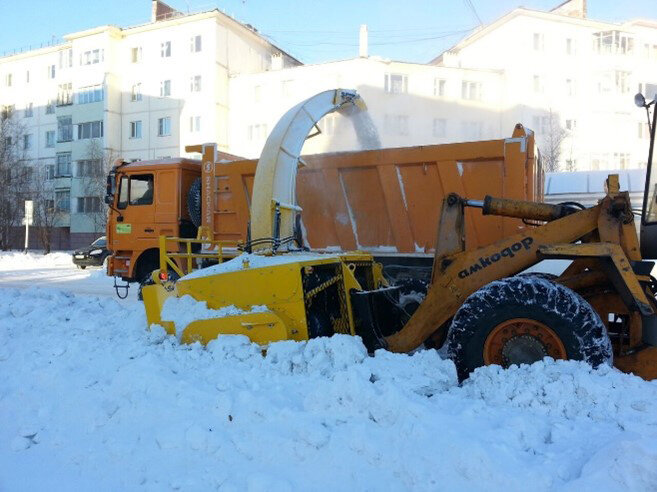

The SRM snow loader is recommended for use with 10-ton wheel loaders. A standard attachment is the Volvo Quick Hitch L50-L120, but there are a variety of other attachments available that expand its use in different markets.

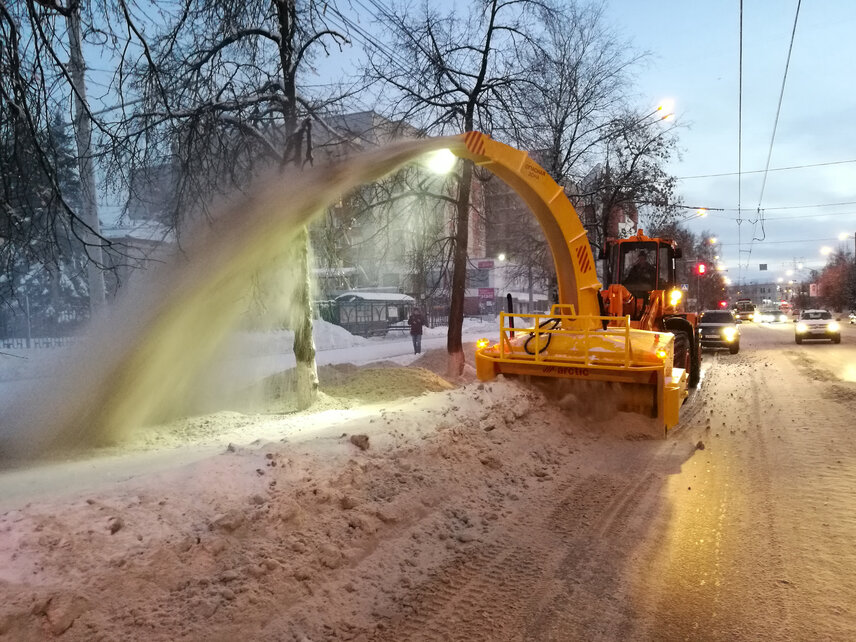

Blowing tubes & accessories

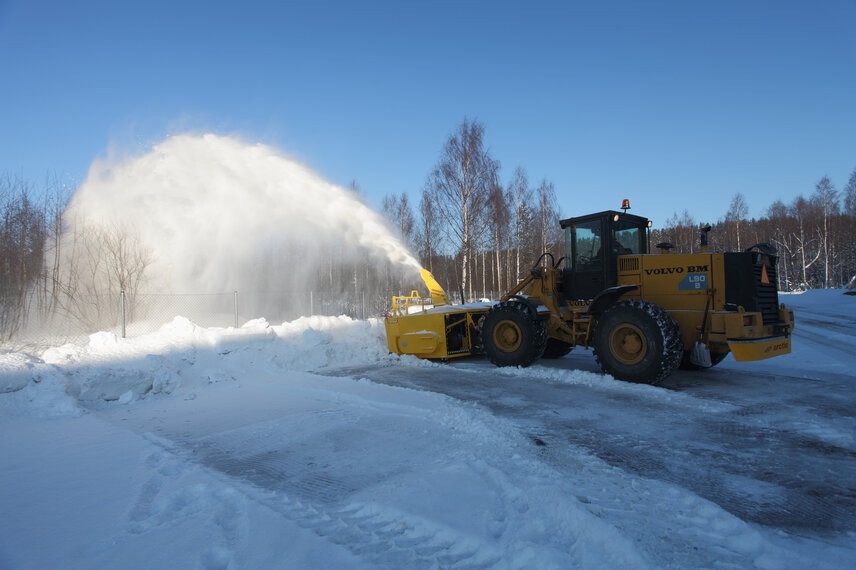

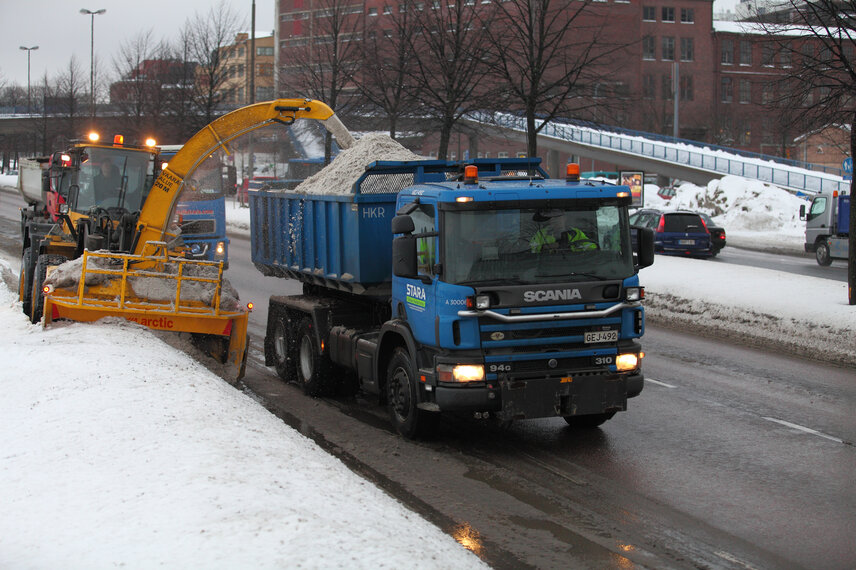

The SRM has two tubes available; a long tube for city use with limited throwing distance, and a shorter one for reaching maximum throwing distance when the surrounding countryside allows it. The long tube with hydraulically controlled visor allows the loading of tippers up to a maximum height of 3.6m, and is open on one side to prevent snow and ice becoming stuck inside. The blowing distance of the shorter tube depends on prevailing conditions, but can reach up to 30m.
