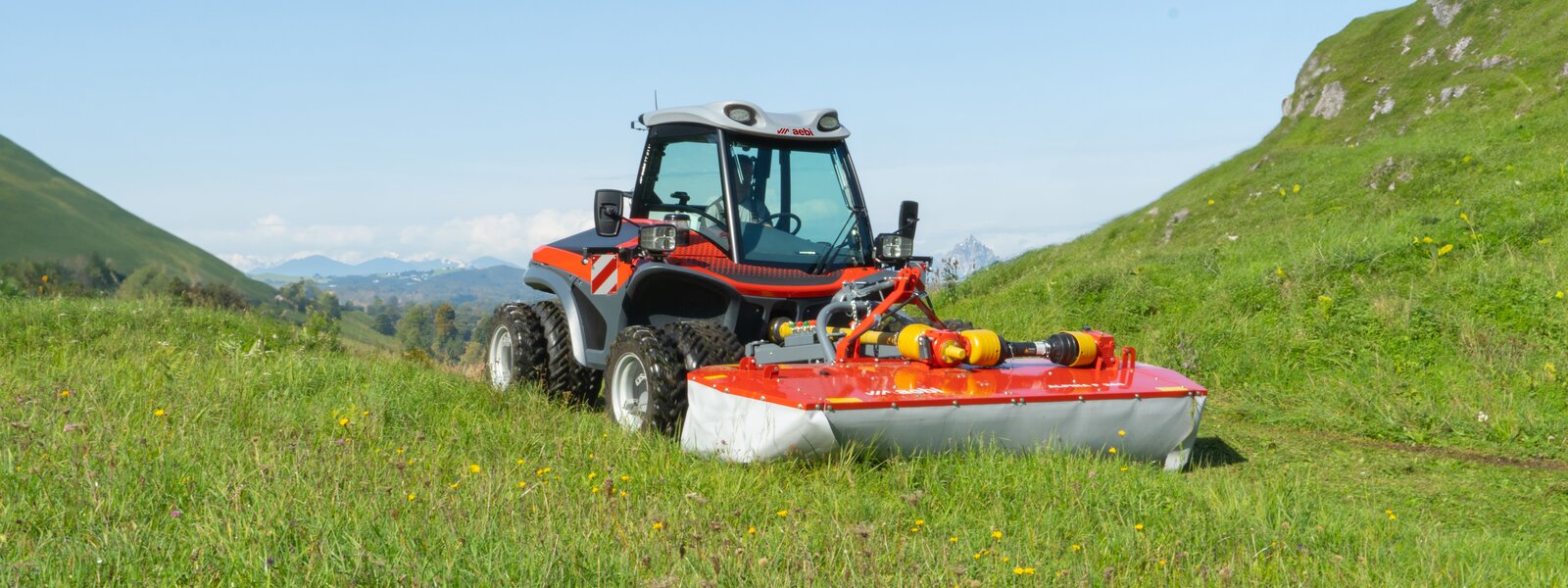

These two compact Terratrac machines are light, maneuverable and can be used safely on any slope. With a low dead weight, a high payload and optimized hydraulics, the machines deliver the highest work performance in their class with maximum soil protection.

Innholdet er ikke tilgjengelig på ønsket språk. Innholdet er tilgjengelig på: English UK, English US, Deutsch, Français, Italiano, Nederlands, Polski

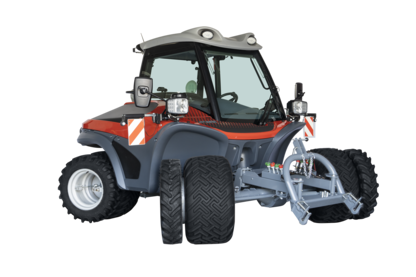

Aebi｜TT 206⁺ / TT 211⁺

Oppsummering av det viktigste

Stepless travel with powerful hydrostatic travel drive
Strong chassis with high payload for use of larger attachments with high working performance
Efficient and stress-free work thanks to simple and logical operating concept
State-of-the-art hydraulic technology for economical work in agriculture and municipal services

Dine fordeler

Safety: Low center of gravity and low dead weight for safe driving in demanding terrain.
Driving and operating comfort: Convenient operation with infinitely variable working speed and spacious cab.
Productivity: Superior maneuverability and automated workflows for superior area performance.
Soil protection: Wide low-pressure tires and the proven all-wheel steering system prevent soil compaction and protect the turf.

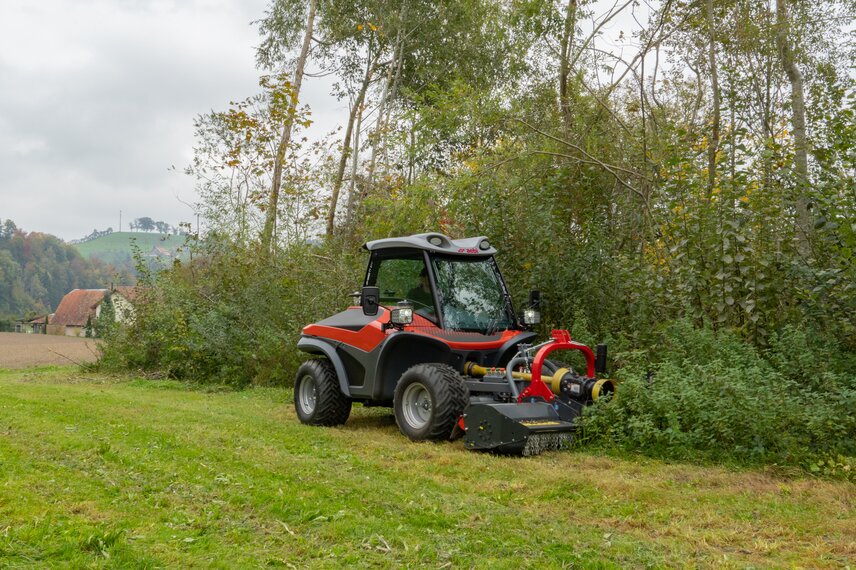

Year-round use: Wide range of attachments for summer and winter service.

Produktvarianter

TT 206⁺

42 kw / 57 hp
174 Nm @ 1 600 1/min
Stage V
3.0 t max. total weight

TT 211⁺

53 kw / 72 hp
225 Nm @ 1 600 1/min
Stage V
3.5 t max. total weight

Bildegalleri

Tekniske data

Product booklet

Driving characteristics

Stepless travel drive

The travel speed is continuously variable and can be controlled either via the travel lever or the foot pedal. The hydrostatic travel drive creates a permanent frictional connection between the engine and the wheels, allowing the vehicle to be maneuvered safely and precisely - even on extreme slopes.

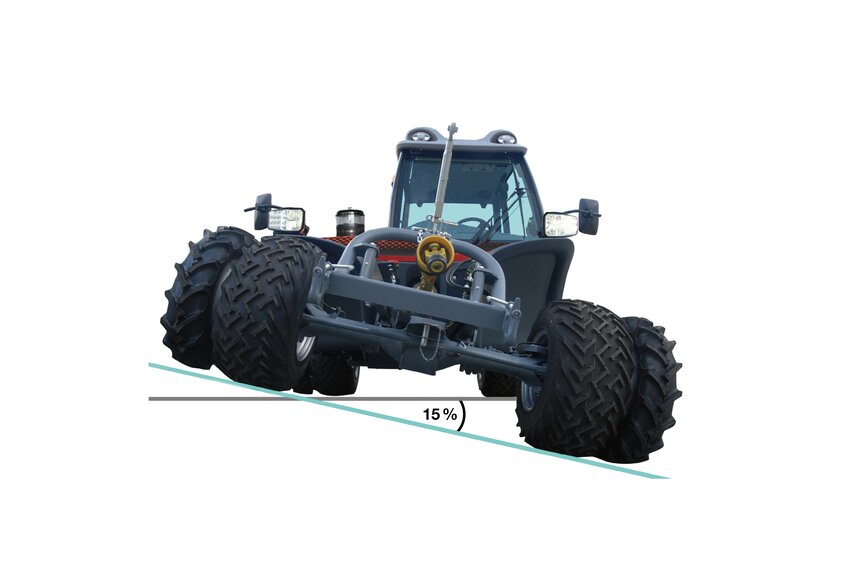

Terrain adaptation

The front axle can twist relative to the rear axle. This twisting enables precise adaptation of the attachments to the terrain.

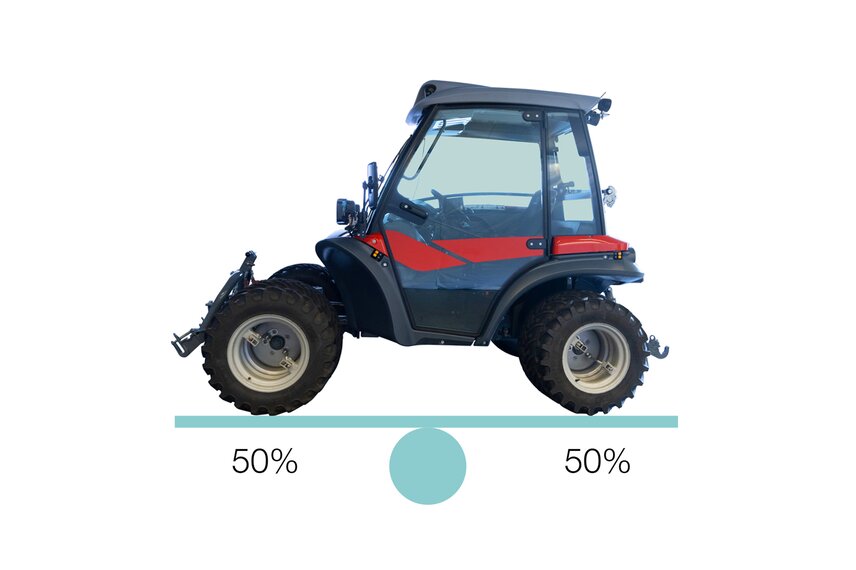

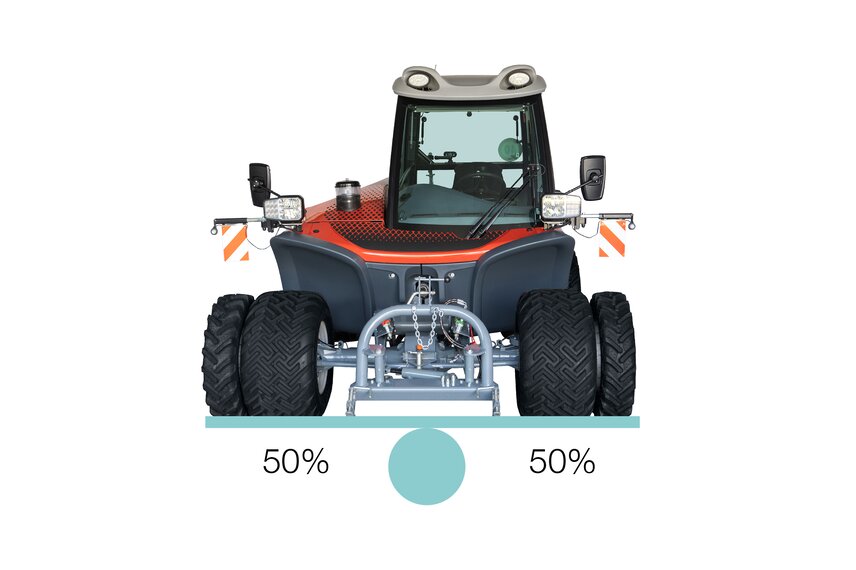

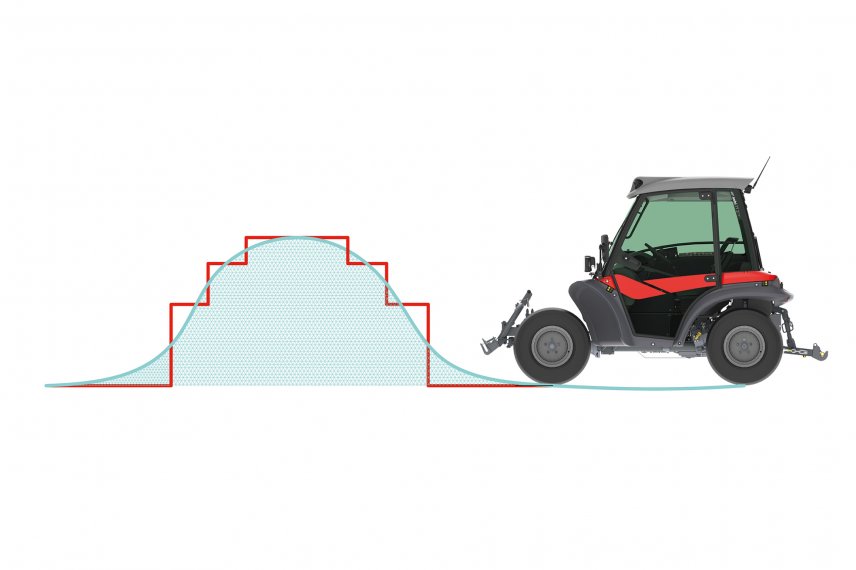

Balanced weight distribution

Both Terratrac models distribute their weight evenly over all wheels. This increases slope capability, protects the soil and reduces tire wear.

Four steering modes

At the touch of a button, you can switch between front (a), rear (b), all-wheel (c) and crab steering (d) while driving. From 25 km/h driving speed, the Terratrac automatically switches to front steering.

Axle differential lock

The chassis features front, rear and longitudinal differential locks as standard. All axle locks are individually switchable at the push of a button.

Hydraulics

Front and rear linkage

The category I front linkage has a lifting capacity of 1300 kg and a standard side shift of up to 400 mm. The catch hook is positioned close to the vehicle, which means that the attachment is guided close to the front axle and adapts optimally to the terrain. The rear linkage complies with categories I & II and has a lifting capacity of 1200 kg. When coupling or uncoupling the attachments, the linkage functions "lifting" and "lowering" as well as a freely selectable control unit can be operated from the outside.

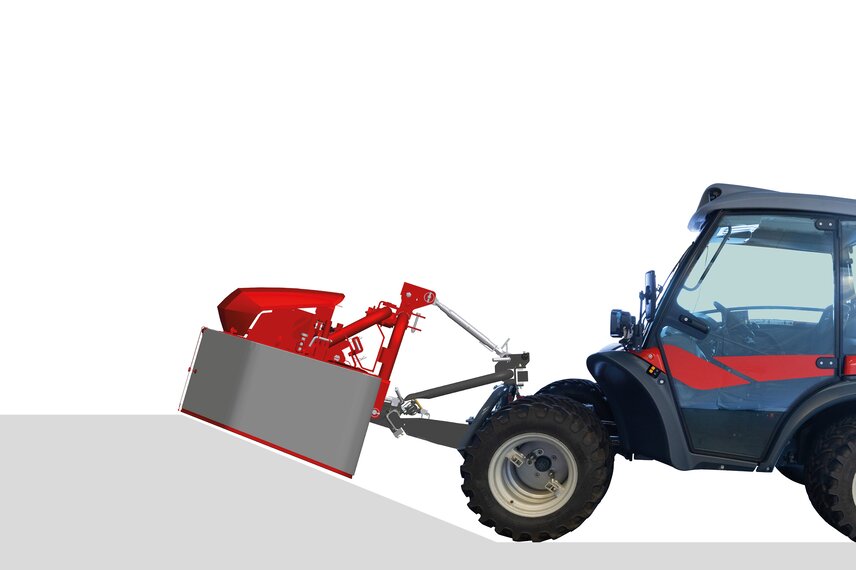

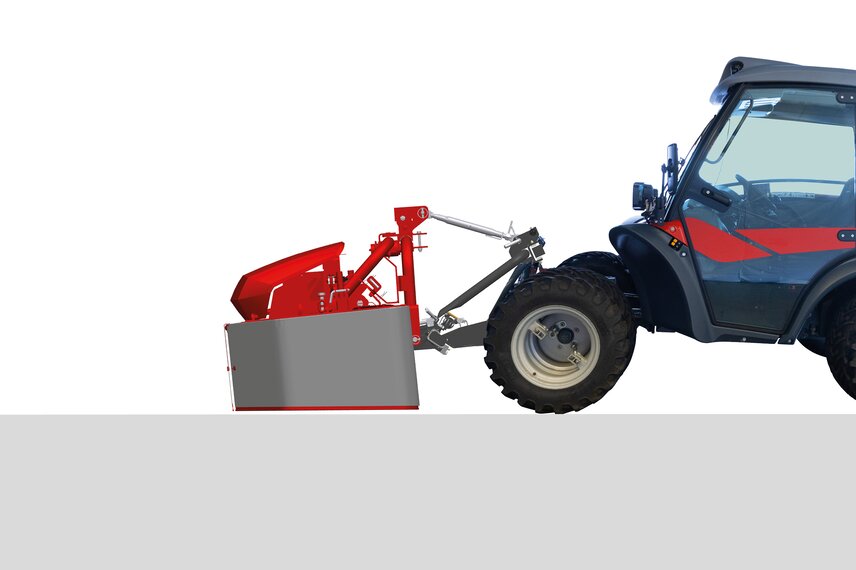

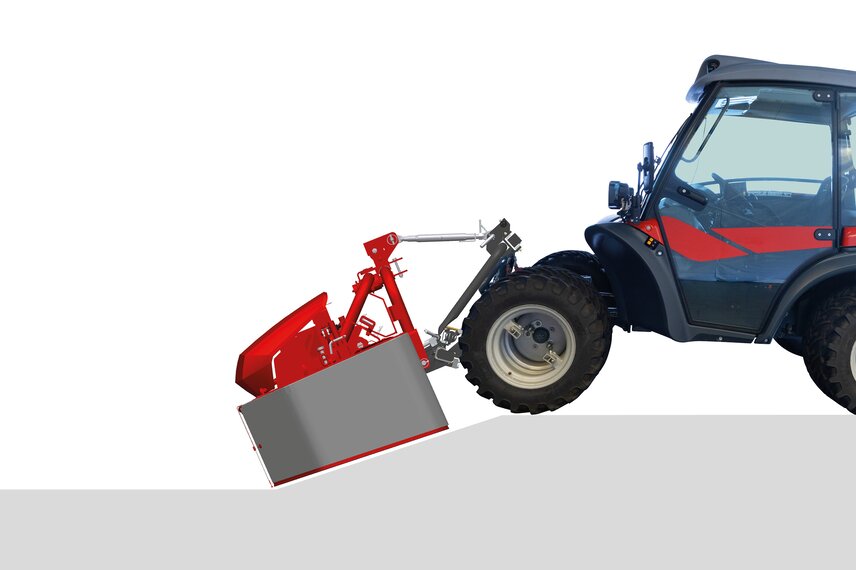

Relief hydraulics

The relief hydraulics allow the attachment to glide over the ground with freely adjustable contact pressure. Together with the laterally oscillating implement suspension, this results in precise adaptation to the course of the terrain and guarantees clean work results.

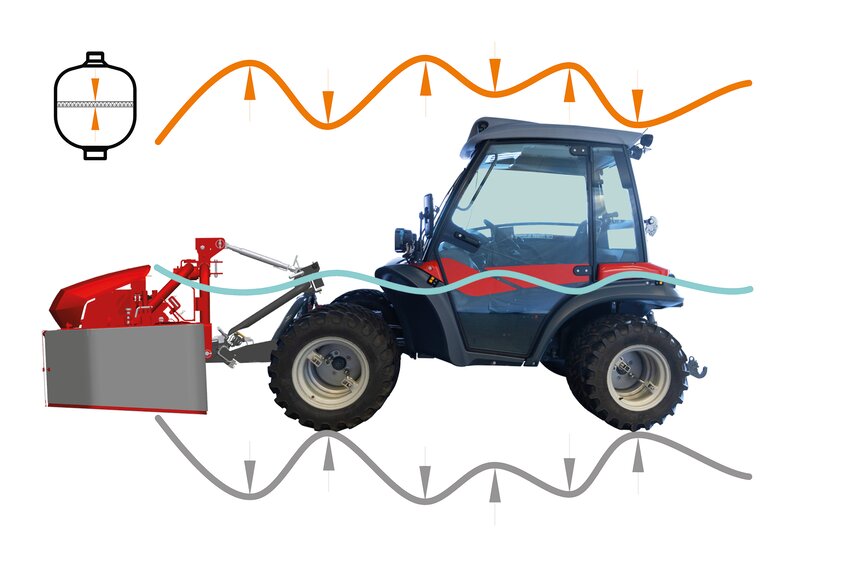

Vibration absorption

The Terratrac's front hydraulics and optional rear hydraulics compensate for vibrations from the attached implements and absorb shocks. This enables faster shifting movements, improves driving safety, increases driving comfort and protects the machine.

Automated workflows

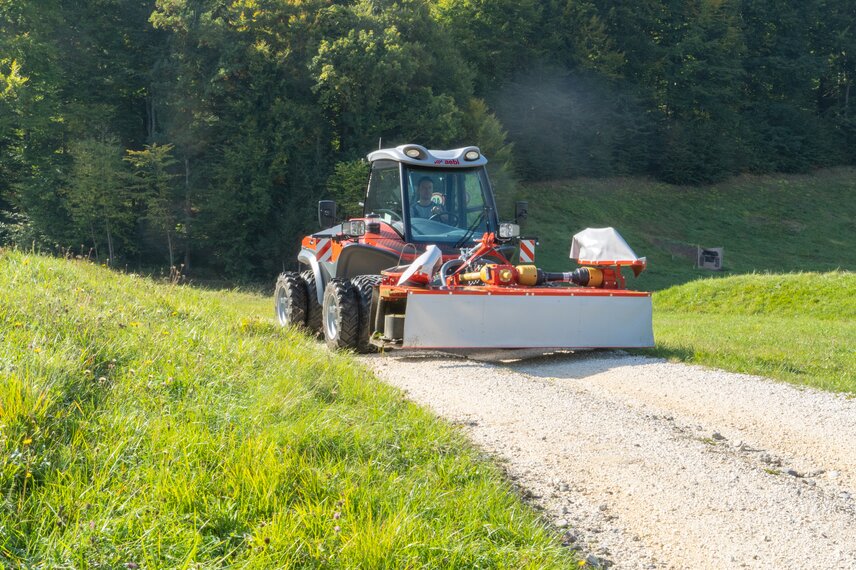

The linkage function combines recurring work steps in an automated sequence. As an example, when mowing, after raising the mower at the front (a), the machine can automatically engage four-wheel steering for the turn and raise the conditioner at the rear (b). If the operator lowers the front linkage again, (c) the front steering activates again and the rear implement lowers (d). The linkages are freely programmable, either simultaneously or with a delay, and save a lot of time during maneuvering.

Workplace

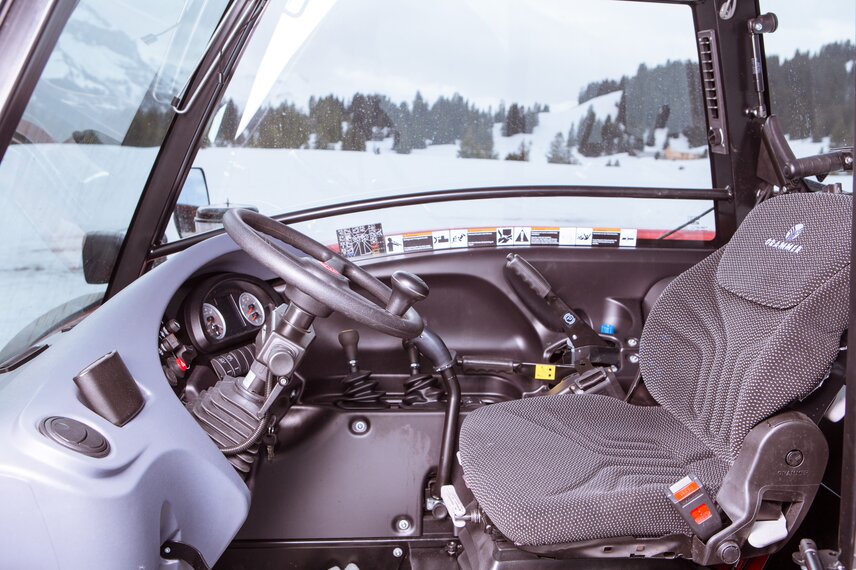

Cockpit

The modern cockpit impresses with plenty of space and an ergonomic arrangement of the controls. Holders for the cell phone and a drinking bottle up to 1.5 l are within easy reach for the driver. For even more comfort in the panoramic cab, heating, dust filter and air conditioning are optionally available.

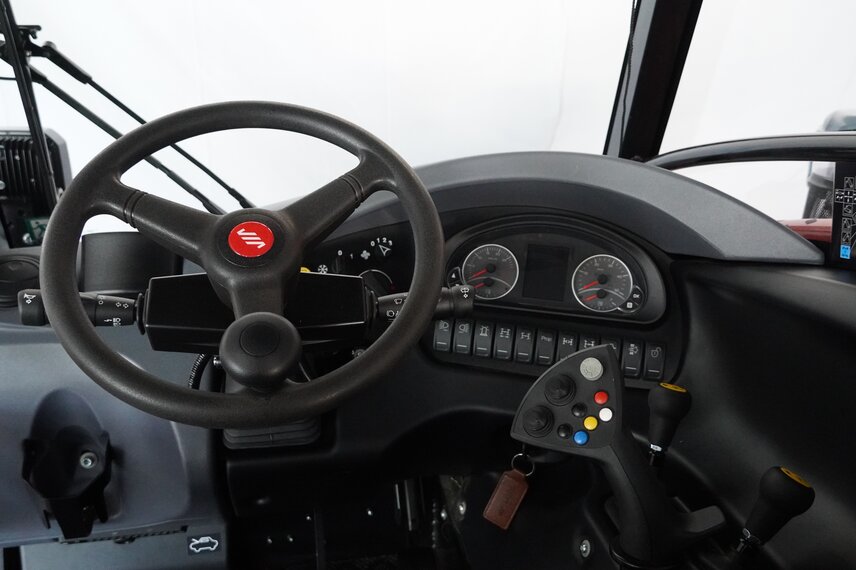

Operating concept

The operator's left hand steers the vehicle, while the right hand controls the direction of travel, speed and linkage functions via the travel lever. The display instrument with color display always informs the driver about all important data. The intuitive operating concept of Aebi vehicles is applied across all products and remains the most innovative system on the market.

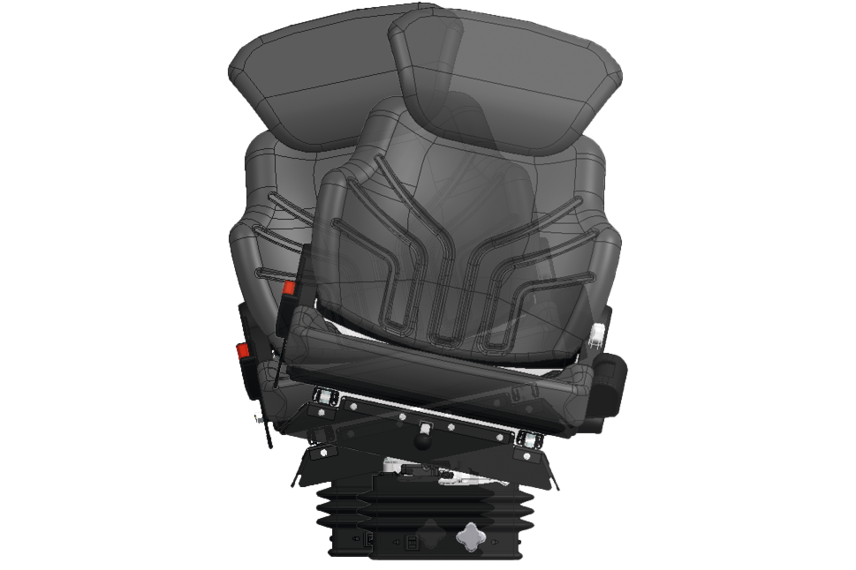

Comfort seat and swivel mechanism

For even greater driving comfort, the seat can be supplemented with air suspension. The optional swivel device allows the driver to sit upright in steep shift line drives.

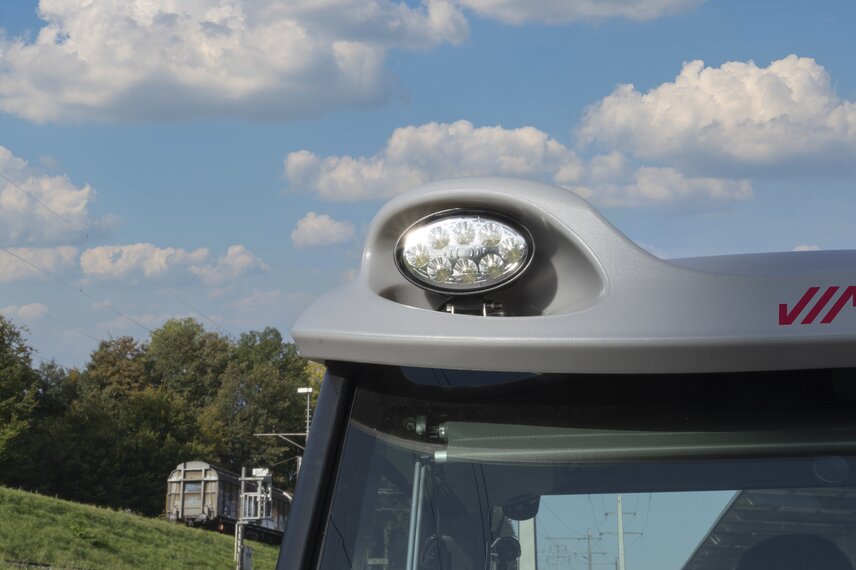

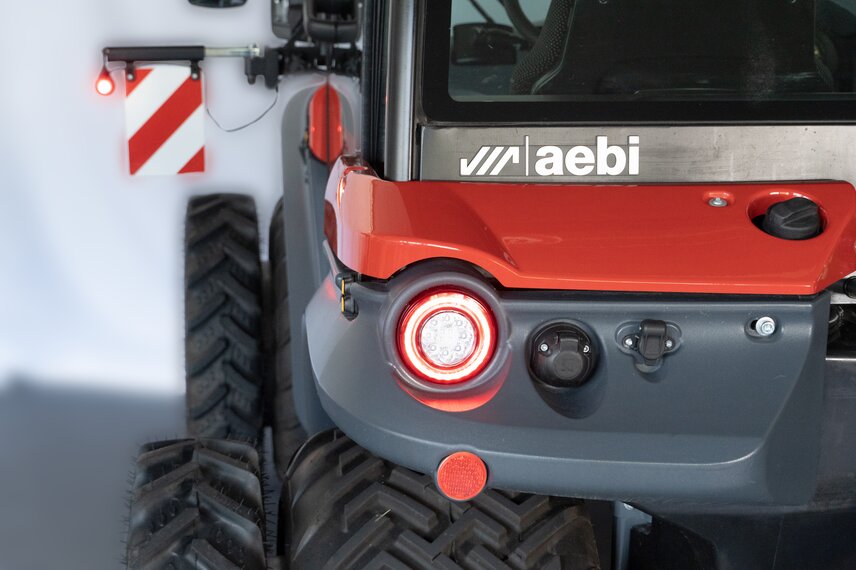

LED lighting

LED lighting for brightest illumination of the working fields and good visibility in road traffic.

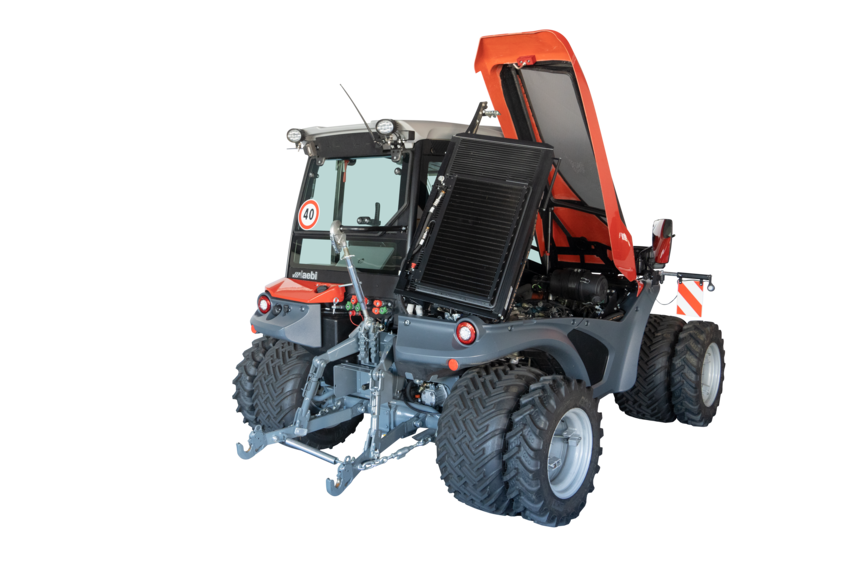

Reversible fan

The large radiator is easily accessible and can be folded back for cleaning. The standard reversible fan changes the direction of rotation automatically and at intervals during operation.
