Schmidt|Sweeper|LKS
Sweeping technology

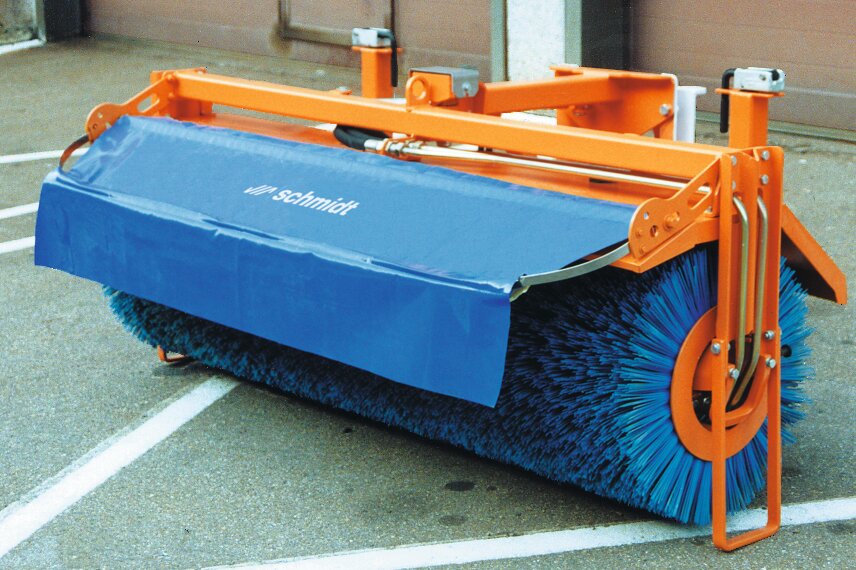

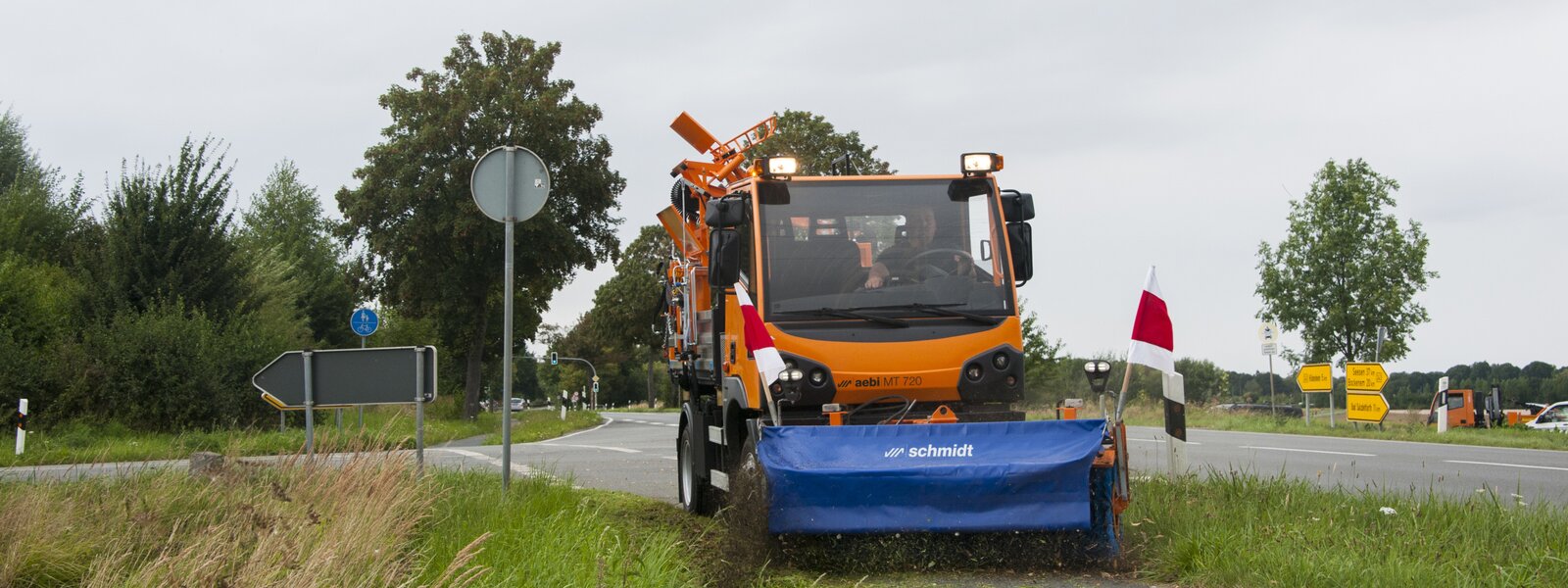

The LKS is designed for mounting on the front of the carrier vehicle. With its supporting frame made of torsion-resistant rectangular tubing with welded-on, height-adjustable and freely rotating trailing wheels, it is very robust. The LKS is supported by two elastic-tyred wheels which can be rotated through 360° and adjusted in height via spindles.

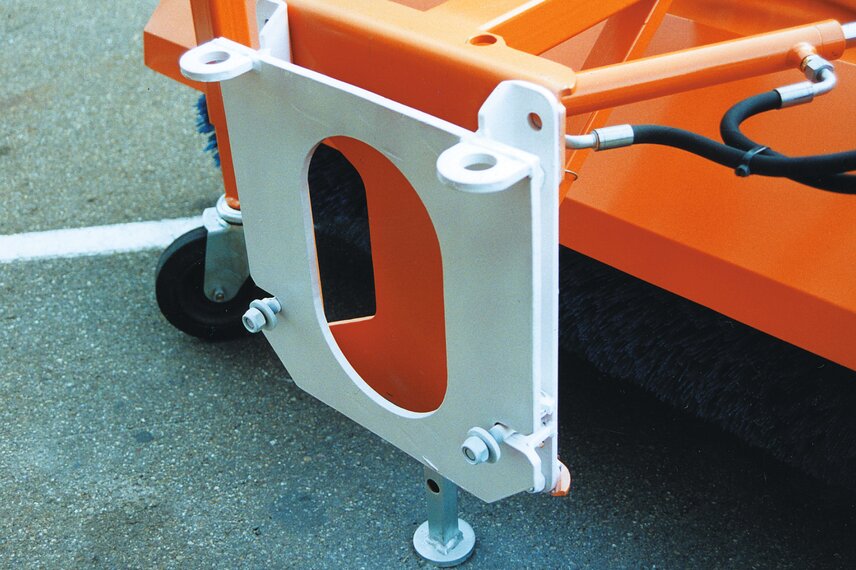

With one extendable and two swing-up parking feet, the LKS is safe and secure on an integrated three-point parking system. This relieves the load on the height-adjustable wheels during the parking period. The strongly dimensioned self-aligning bearing ensures that forces are absorbed and transmitted.
A wind deflector tensioned with spring steel prevents the unintentional ejection of swept material even at high performance. Due to its elasticity, it easily absorbs light impacts, for example when hitting a wall. Uneven floors are automatically compensated by a self-aligning bearing with nylon slide rails.
With bristles made of high-quality polypropylene, the LKS quickly cleans even the dirtiest small and medium-sized surfaces. Depending on the model, the LKS is available with different roller lengths: LKS 14 (1400 mm), LKS 16 (1600 mm), LKS 18 (1800 mm) and LKS 20 (2000 mm).
Drive

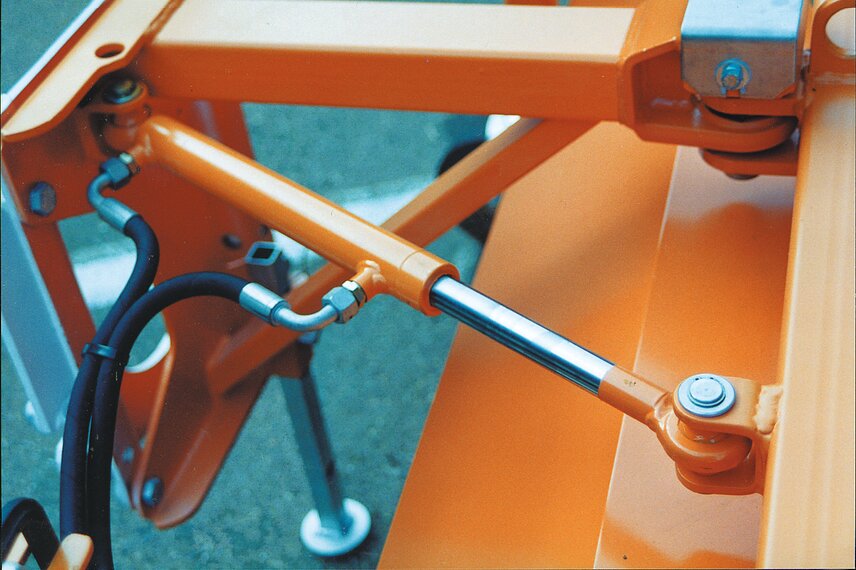

The integrated hydraulic motor is located inside the sweeping roller, so that no parts protrude. Due to this compact design, the operator has an unobstructed view of his work equipment. As a result, the LKS achieves excellent results when working directly on industrial or house walls, as no components protrude laterally. A hydraulic swivel cylinder allows the LKS to sweep continuously to the left, right or directly forwards.
Year-round use
Due to its design, the LKS is not only suitable for cleaning work in summer but is a genuine all-rounder. As the series is available with brush material for various applications, it is also ideal for use in winter. And, with its special whisk, it keeps surfaces with a light covering completely snow-free.
Options
- Hydraulic page changeover
- Water spray device
