Schmidt|Street washer|Straliq CityJet
Washing technology

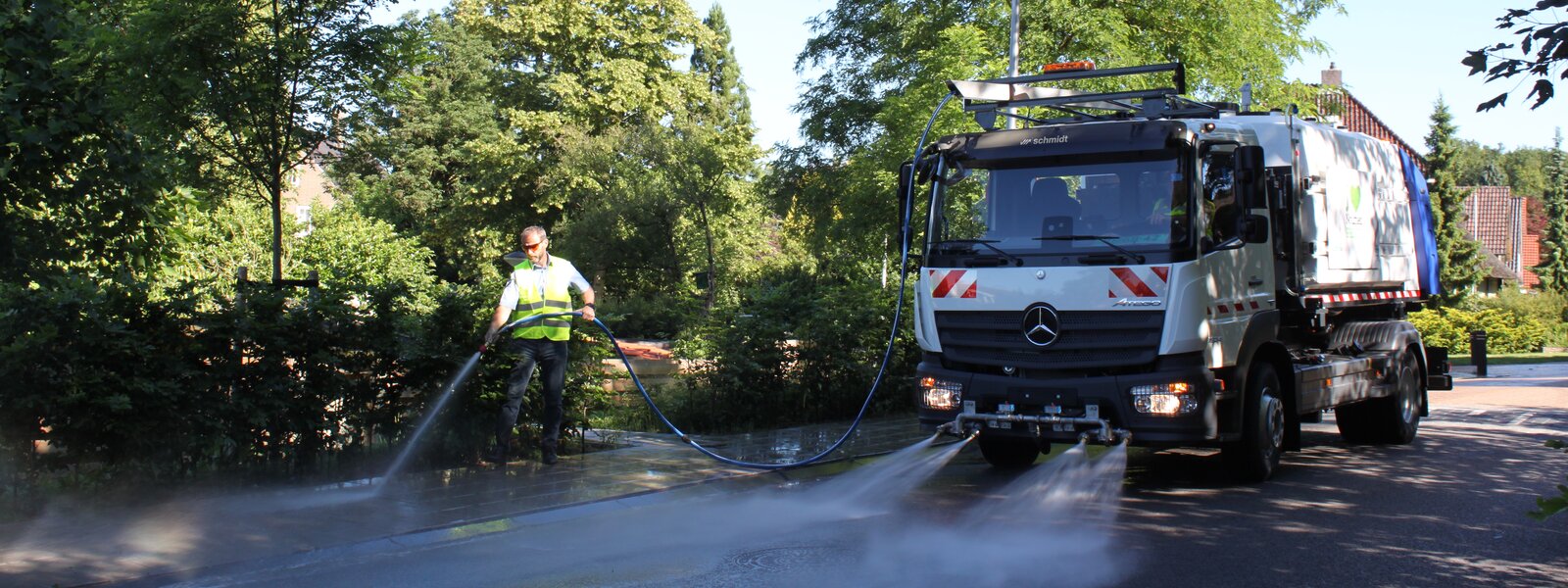

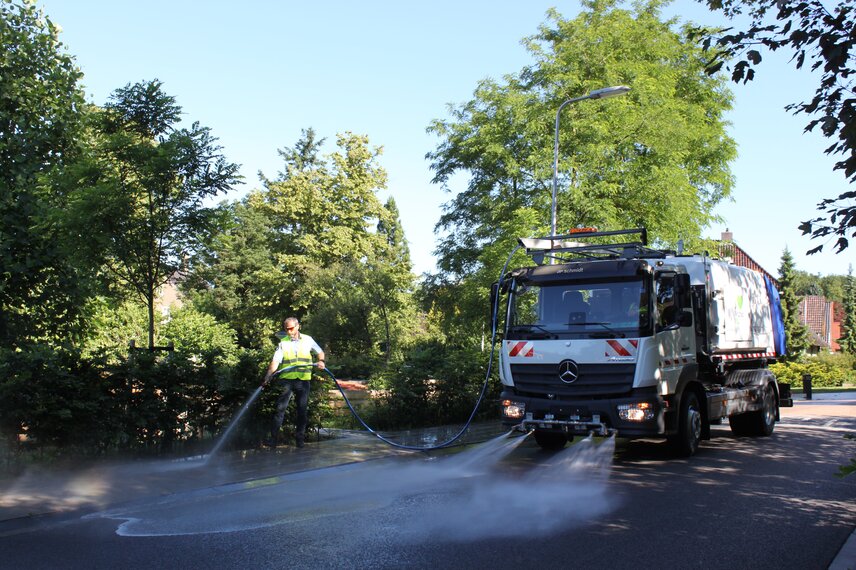

The Straliq CityJet cleans surfaces with water and high pressure, removing even the most stubborn dirt. In particularly dry climates, it can also be used for simple and quick dust removal.
Dosage and distribution system

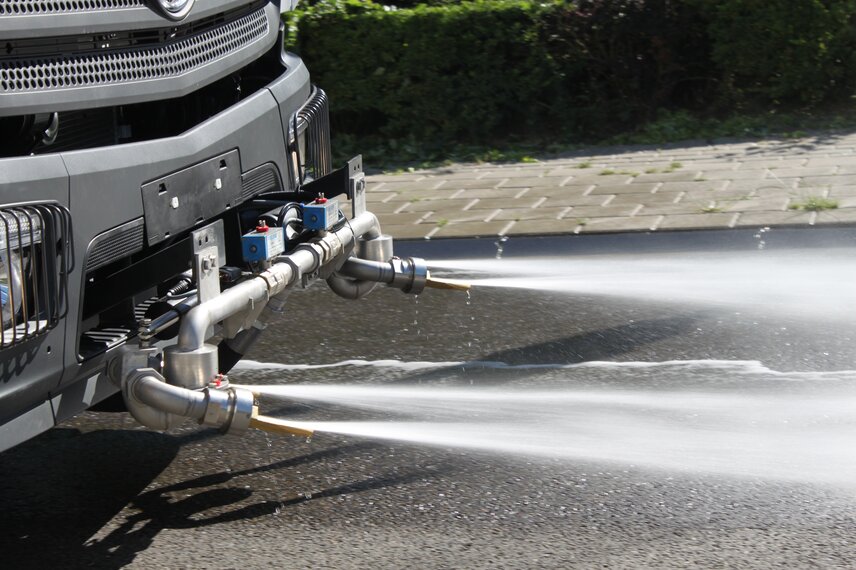

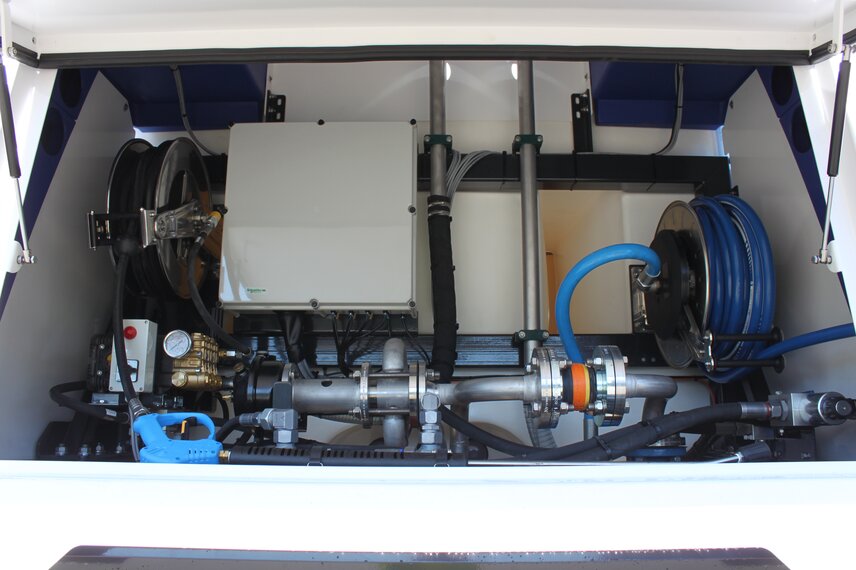

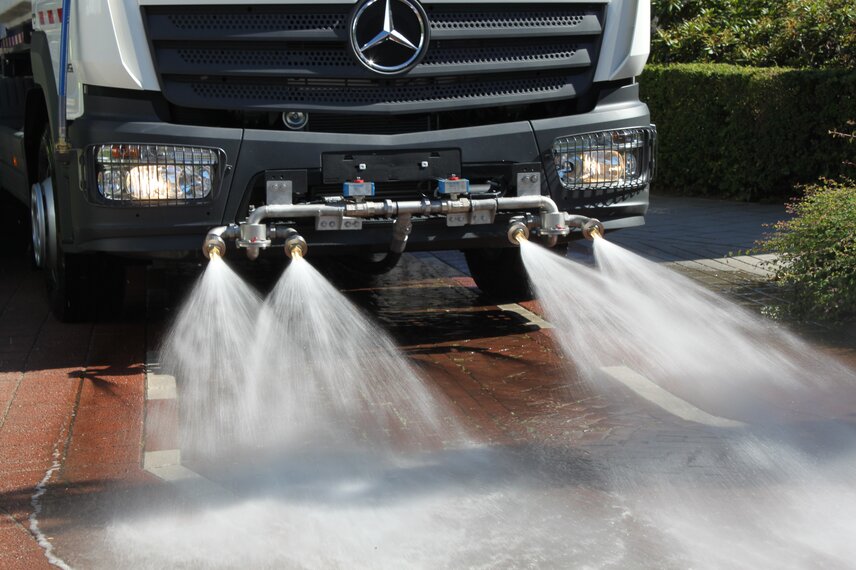

The beating heart of the dosing system is a centrifugal pump with a capacity of 330 litres per minute which pumps water from the tanks to the nozzles. Mounted at the front of the vehicle is a stainless steel spray bar with flat-jet nozzles which can be adjusted separately to create an optimal spray pattern for every situation. The spray pattern is adjusted by two electric motors, while the spraying width can be varied between three and 11 metres. In addition, a spray lance with 15 metre hose is mounted in the pump unit compartment.
Water tanks
The Straliq CityJet is equipped with a 7,500-12,500 litre water tank system consisting of UV and impact-resistant polyethelene tanks which, due to their compact and modular design, can be easily adpated to the carrier vehicle. The low construction of the tanks ensures a low centre of gravity and good conductivity of the entire unit.
Ergonomics and comfort
The Straliq CityJet can be operated conveniently from the driver's cab using the ES control panel. Easy-grip click-turn knobs and illuminated push buttons ensure that the driver can concentrate on the traffic and road conditions during his work without distraction.
Drive
The Straliq CityJet is powered by the hydraulic system of the carrier vehicle. A mechanical E-PTO drive from an electric truck can also be connected on request, creating a very quiet machine that is ideal for use in urban traffic.
Wide range of options
- Joystick control via two joysticks
- Roof boom with hand-held spray lance
- Liquid level indicator on operating panel
- 2x rear flashing LED warning lamps
- Red-white high visibility marking
