- Lithium-ion battery technology with integrated heating system, especially for use in low temperatures.
- Standard battery capacity is sufficient for spreading two full hopper loads without recharging.
- Integrated charger. No separate installation required at the depot, just a 230 V AC connection.
Environmentally friendly electric drive

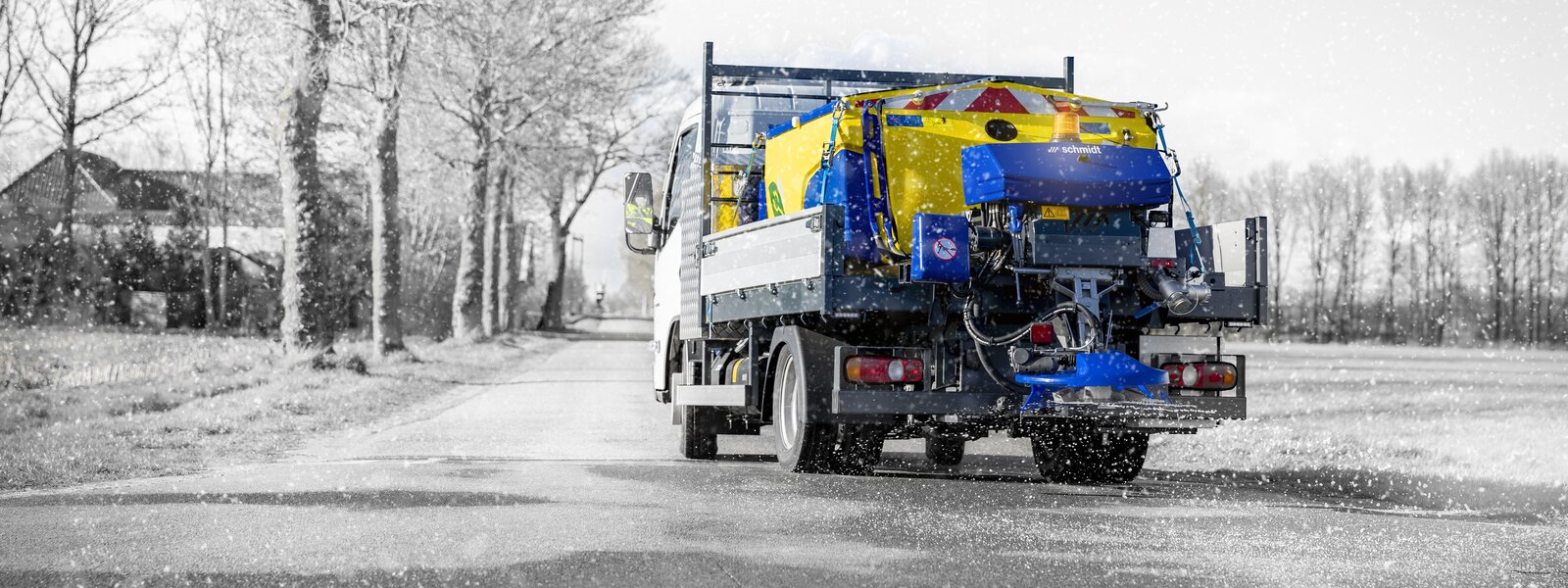

The eSyntos has a front-mounted battery pack (4.1 / 6.1 / 8.2 kWh, 48 V) and an electric motor. The powerful batteries allow two spreading operations of two full hoppers without recharging. The integrated charger allows the eSyntos to be recharged at any 230 V AC connection. The lithium-ion battery technology with integrated heating system is specially designed for use at low temperatures (down to -20°C).
The use of hydraulic technology makes the eSyntos equal to a conventional/hydraulic machine. The spreader maintains its full power and is not restricted in its performance by the usually limited power of the carrier vehicle. Moreover, when mounted on an electric carrier vehicle, the range of the carrier vehicle remains unchanged. Compared to a motor-driven spreader, the noise level is significantly lower. In addition, the safe low-voltage 48 V DC system can be maintained without the need for special training or safety measures.
The eSyntos is a robust spreader made of durable polyethylene, with a liquid tank integrated in the hopper which enables even emptying and contributes to a low centre of gravity. Three hopper sizes from 0.8-1.5 m3 and several different frame lengths are available.
Dosage and conveyor systems
The dosing system can be either belt or auger conveyor. With the trailer version, dosing is carried out exclusively via the belt conveyor system. A V-shaped, endlessly profiled conveyor belt is used, which runs on a sliding plate and thus leaves no bearing points in the hopper. The dosing slide with an integrated lump crusher ensures high dosing accuracy. The hydraulic motor-driven auger conveyor has a variable thread which gives uniform hopper emptying.
The spreader is equipped with an integrated all-round brine tank with a liquid level indicator and a brine pump with run-dry protection. A rear-side Storz C connection is available for filling and emptying. When switching on the brine (FS 30), the dry material is automatically reduced and the distribution system settings are optimised in accordance with the change in composition of the de-icing agent. The system achieves a high level of accuracy, thanks to integrated sensors for comparison of the actual versus the target value of the control loops.
Spreading is carried out via a 350mm stainless steel spreading disc offering a width of 2m-6m, and the entire distribution system can be folded up and is infinitely adjustable so that the optimum distance to the ground can be set for each carrier vehicle. In combination with the EP or ES control panel, an electric spreading pattern adjustment is available as standard.
Control and information technology
Operation is via a digital full road-speed related EP control with a large, clear graphic display, easy-grip rotary knobs with click louvres and illuminated push buttons. As option, the full road-speed related ES control with 7" colour touch screen is available.
IntelliOPS telematics platform
The Syntos spreaders can be connected to the Aebi Schmidt IntelliOPS platform which provides comprehensive monitoring, selection, reporting and analysis functions. It enables rapid performance evaluation by displaying machine activity data live on a map and uses collected data to provide detailed overviews and reports to optimise operations.
