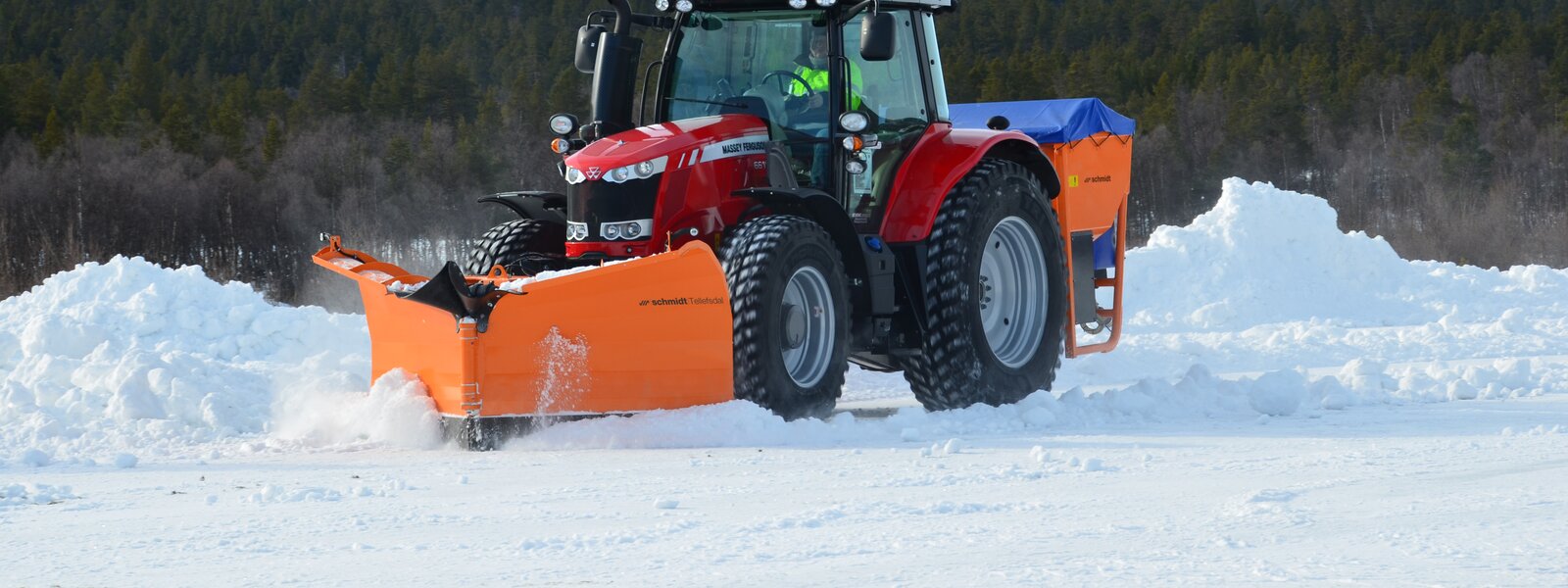

The Tellefsdal V90 is a powerful and robust V-type (Vario) snow plough for thorough snow clearance and demanding winter maintenance. The twin V-type plough shares can be rotated independently of each other from a V-point to a parallel position. This makes the plough highly flexible and suitable for clearing snow from a wide variety of different surfaces. A reliable override system prevents damage when hitting solid obstacles, and also offers greater security for driver and vehicle.

  • Plough blade
  • Override security system
  • Mounting
  • Hydraulic angling system
Back to overview

Schmidt|Tellefsdal V90

Highlights

  • Adaptation plate with cross slope compensation, specially designed for the V90
  • Vario-geometry makes the V90 very versatile and suitable for a wide range of rural and urban conditions
  • Available in different sizes (2890 to 3790mm) to meet a variety of needs

Your benefits

  • Very good clearing performance due to stability and robustness
  • Strong and sturdy construction with 90° angle of attack and solid override protection
  • Universally suitable for all surfaces due to the highly flexible plough shape

Image Gallery

Technical data

Product booklet

Share by email

Plough blade

The Tellefsdal V90 is 1,200 mm high and available in different widths. The robust plough blade is designed for the toughest snow conditions and is ideally matched for the most powerful vehicles on the market.

Override security system

Each plough share is equipped with an override security system to provide safe and smooth operation. The V-shaped plough is equipped with adjustable coil springs on the cutting edges, which are factory-set for "normal" conditions and can be adjusted on request.

Mounting

The plough can be operated on a variety of vehicles. For vehicles with mounting plates, the plough has its own powerful lifting device that is able to deal with the toughest snow conditions. For vehicles with their own lifting device, such as wheel loaders or tractors, the plough can be equipped with an adaptation plate with a mechanical floating position, which can be blocked when not needed.

Hydraulic angling system

Lateral adjustment is achieved by two powerful double-action swivel cylinders that position the plough in the selected clearing position without backlash. Two versions of the hydraulic system are available: Superswing and Superswing with Syncro functionality.
