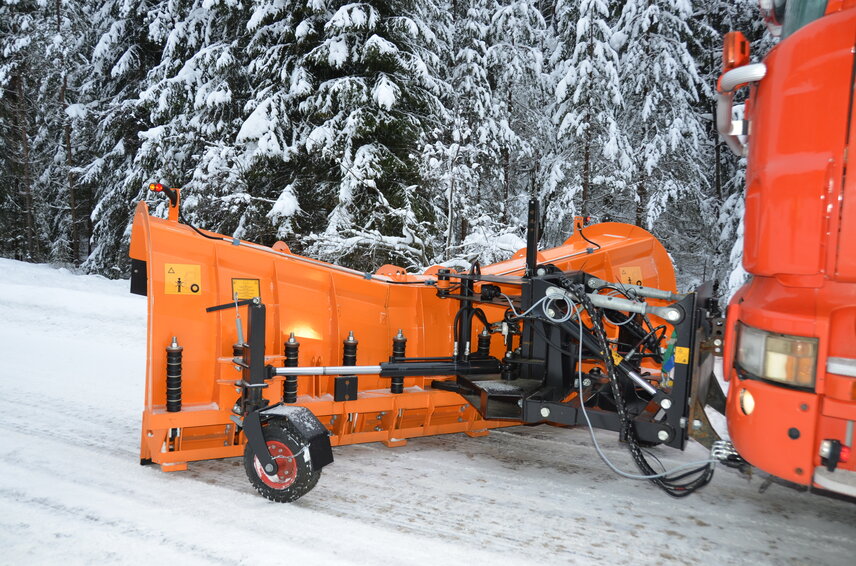

- Robust design of a snow-clearing all-rounder
- Unique snow removal characteristics thanks to the aggressive angle of the plough and the optional second cutting edge
- Due to its optimized form, the plough prevents the build-up of a snow wall on the right side
- Aggressive angle of attack (70°) to the road provides efficient and effective clearing

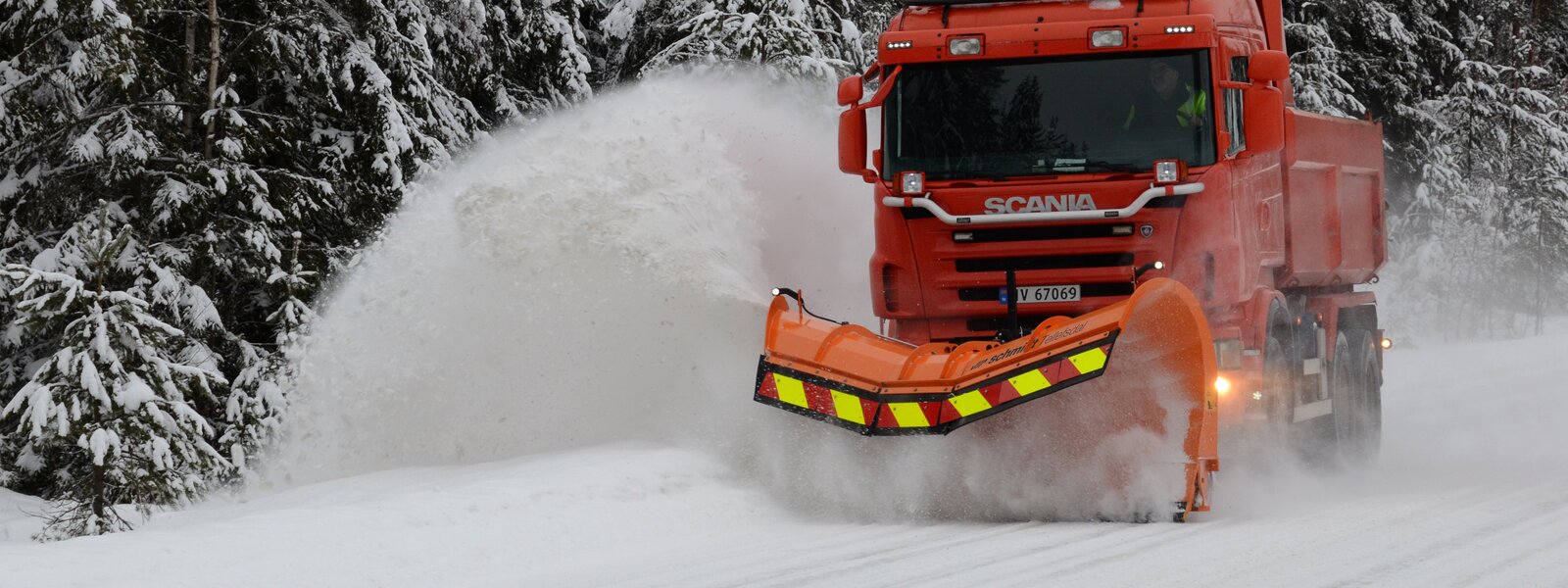

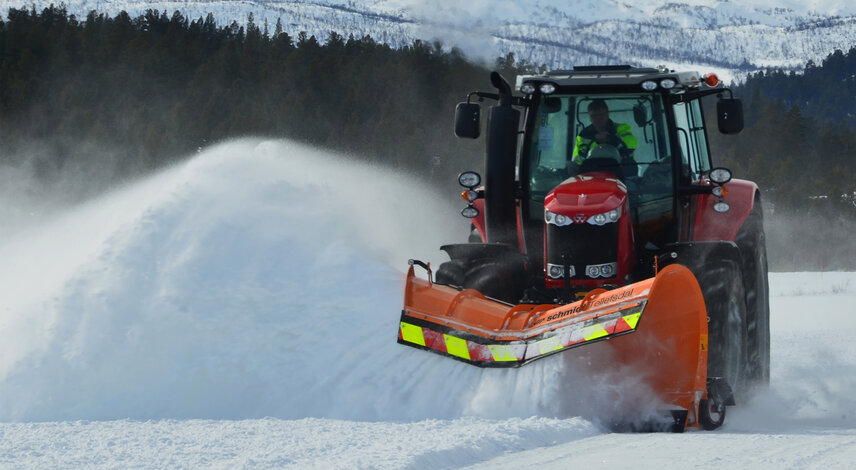

The Tellefsdal K70 offers a 70° attack angle to the road, making snow clearance clean and effective. It also has a 35° angle to the right- and left-hand sides to roll and throw the snow effectively and efficiently on either side. The plough share is designed with integrated snow deflectors, which prevent the snow falling onto the windscreen and obscuring the driver's vision. The left edge of the plough is designed in a way which allows the operator to drive as close to the roadside or crash barrier as possible.
Override security system
As standard, the K70 is equipped with a unique override security system with a number of key features:
- Stiffness of the system is perfect for clearing hard, compacted snow.
- Linking arms system provides an ideal adjustment to the road surface.
- The override system is divided into four or five segments, depending on the size of the plough, which absorb the impact energy from hitting an obstacle and provide safe and smooth passage over the obstacle.
A three-point lift with automatic transverse tilt compensation enables the plough to be raised and lowered accurately and perfectly straight. The hydraulic lift is specially designed for improved rust resistance.
Hydraulic angling system
Lateral adjustment is achieved by two powerful double-action swivel cylinders that position the plough in the ideal clearing position without backlash. The hydraulic cylinders are protected by pressure relief valves.
The special coating of the piston rod within the hydraulic swivel cylinder provides improved rust resistance.
The mounting device is height-adjustable, so the plough can be positioned correctly on different vehicle mounting plates.
- Fine-finish blade
- Warning marks
- LED marker lights
- LED flashing light
