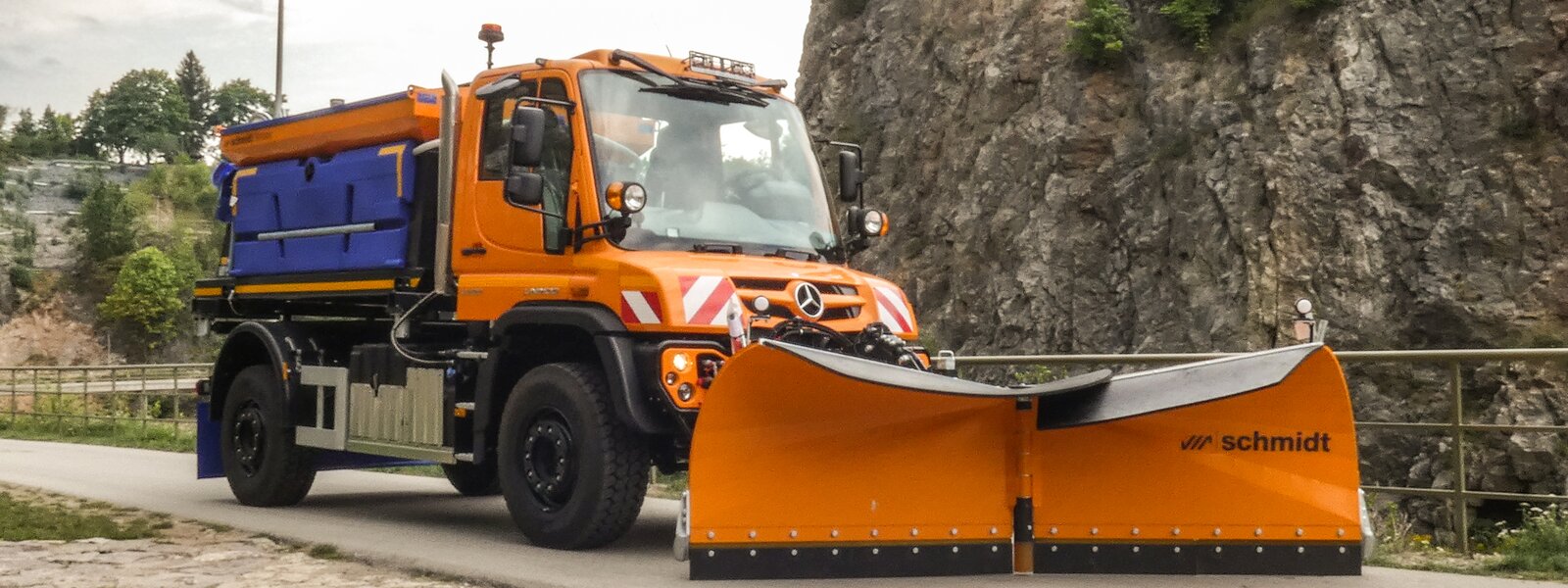

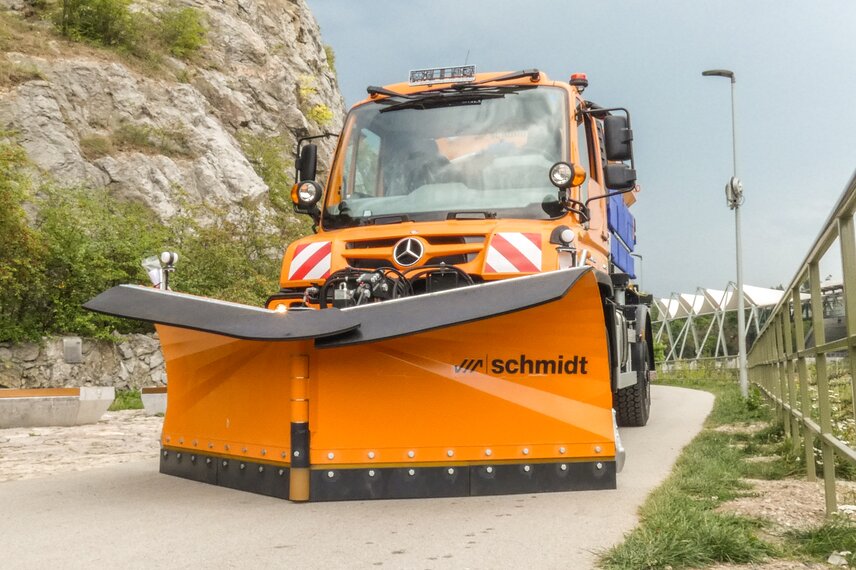

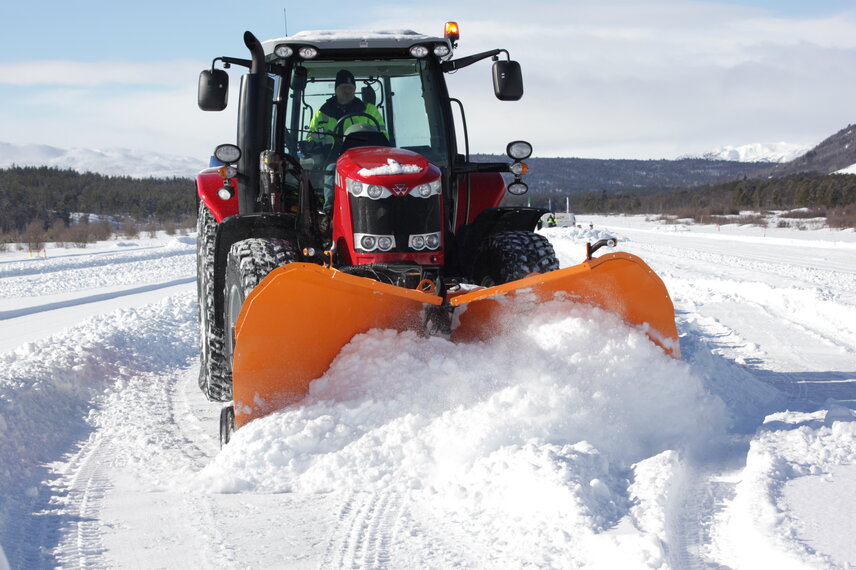

The KL-V is a variable wedge snow plough, which is available in different plough forms and meets a multitude of applications. The KLV-series offers wedge shape, V-shape and one-sided snow ploughs, and is ideal for clearing inner-city areas, car parks and roads, along with access to buildings and other infrastructure. The KL-V is designed for mounting on Unimogs, trucks, tractors or wheel loaders.

Schmidt|KL-V

Highlights

  • Flexible plough form
  • Two continuously variable, simultaneously pivoting plough shares
  • Override security system

Your benefits

  • Flexibility: Use as wedge-shaped, V-shaped and one-sided snow plough
  • Versatility: Can be used for a wide range of applications
  • Performance: Suitable for clearing difficult and hard-to-reach areas such as car parks

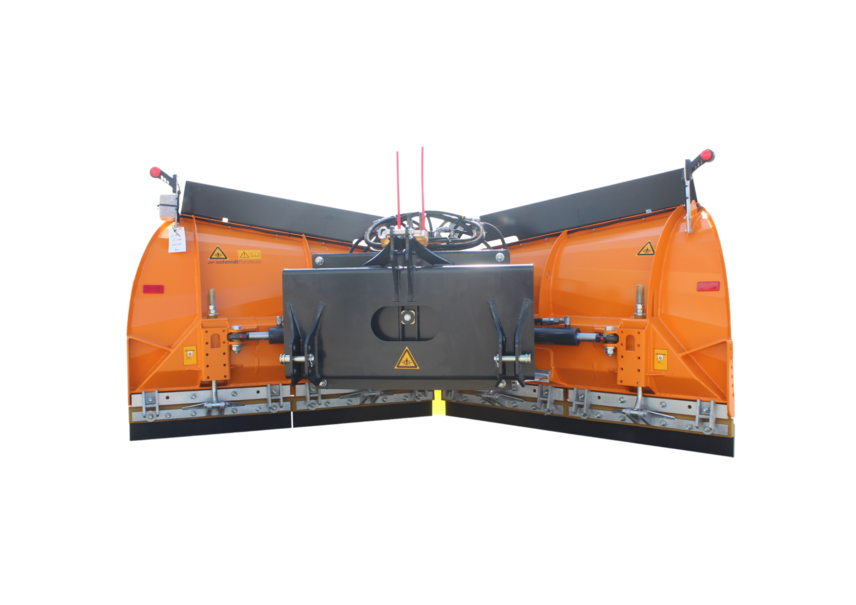

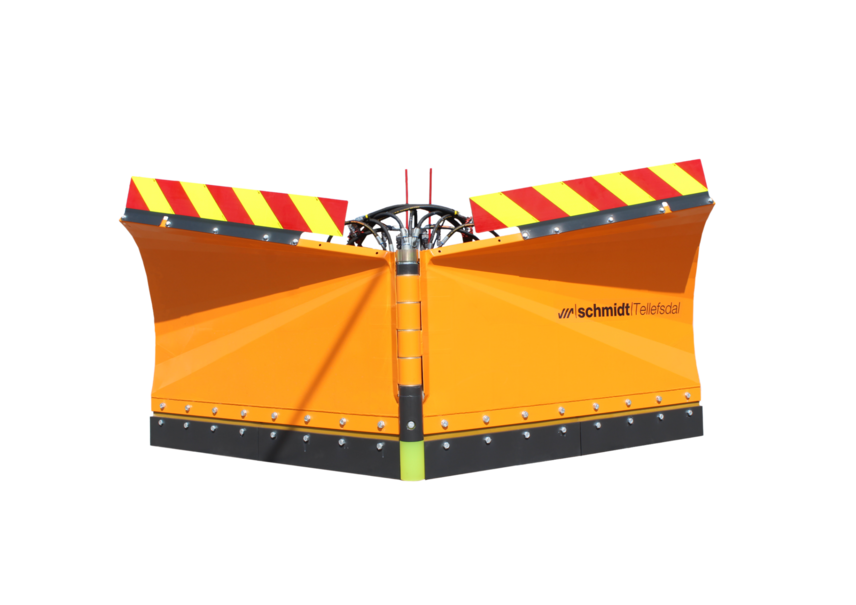

Plough blade

The KL-V series ploughs consist of two stepless, simultaneously pivoting blade wings with synchronous control, and can be used as wedge-shaped, V-shaped and one-sided snow ploughs, suitable for various clearing tasks. The box design of the ploughs ensures high stability.

The KL-V ploughs are designed to achieve optimum snow ejection rates even with different snow heights. This makes them particularly suitable for clearing difficult areas such as car parks, narrow roads in city centres and the targeted clearing of busy road junctions.

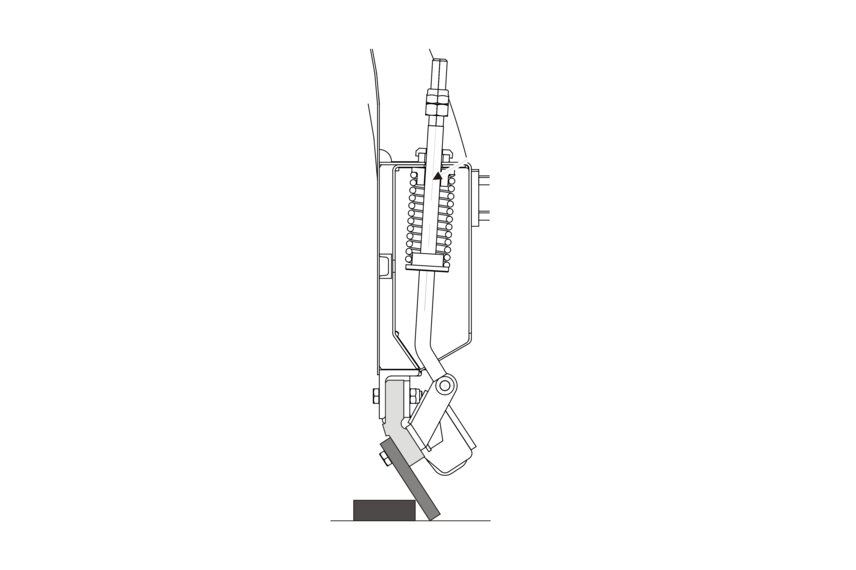

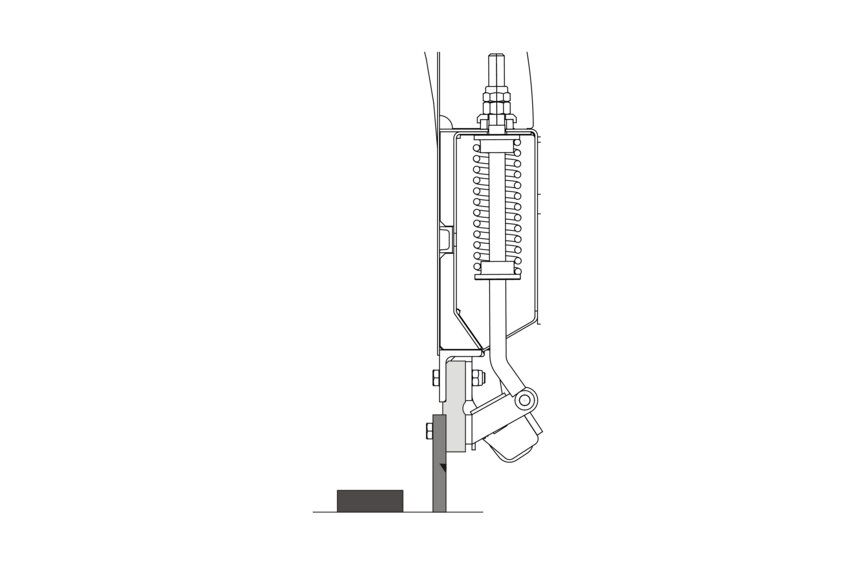

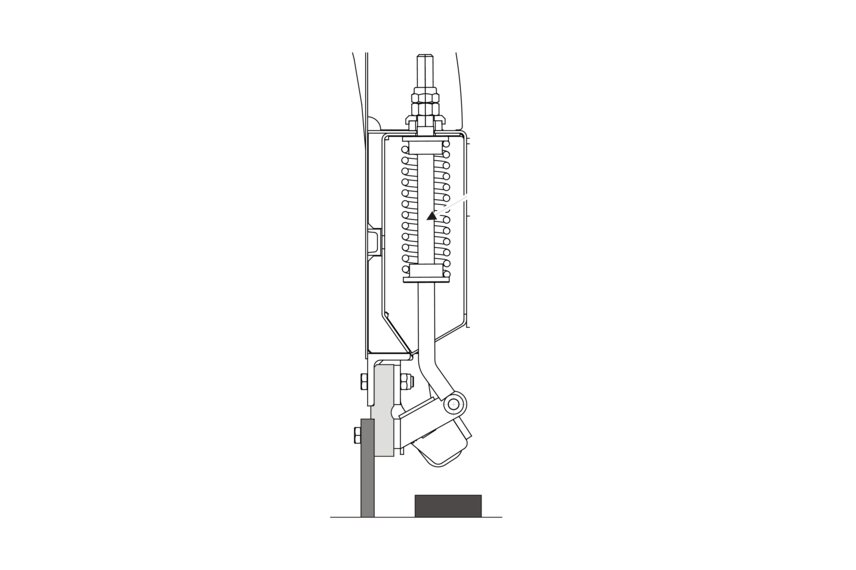

Override security system

Each ploughshare is equipped with an override security system. A shock absorber rail between the cutting edge and plough blade, plus a pendulum device with damping element,  reduces noise and delivers very smooth running characteristics. The PU locking pin closes the gap between the cutting edge of the right and left ploughshare.

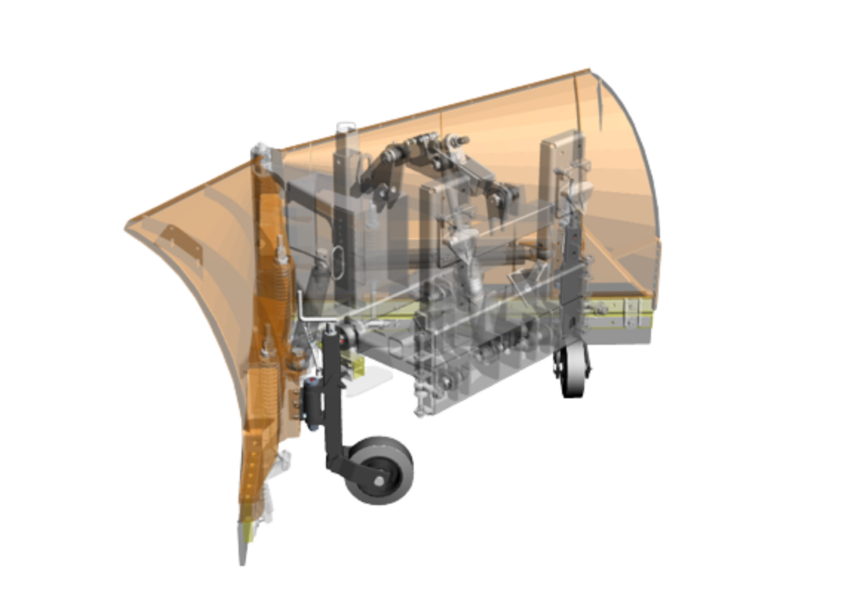

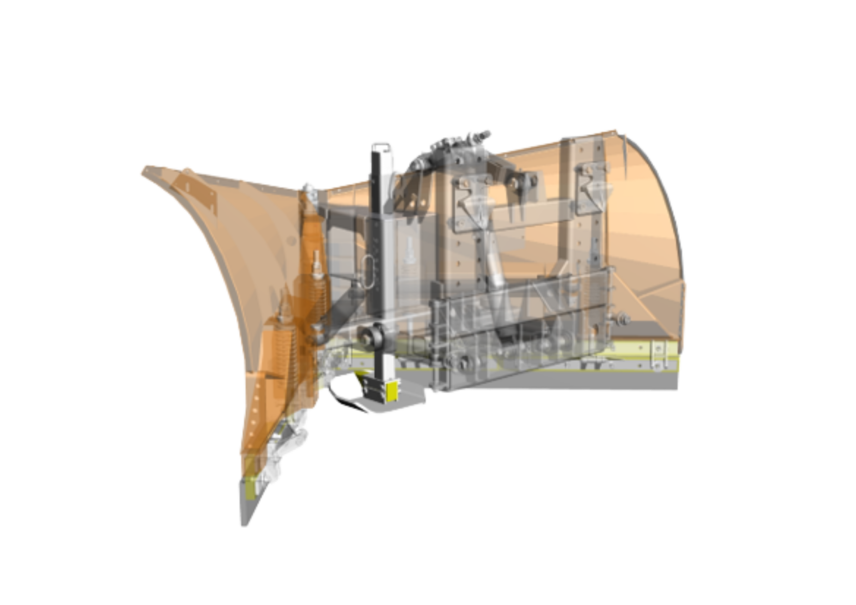

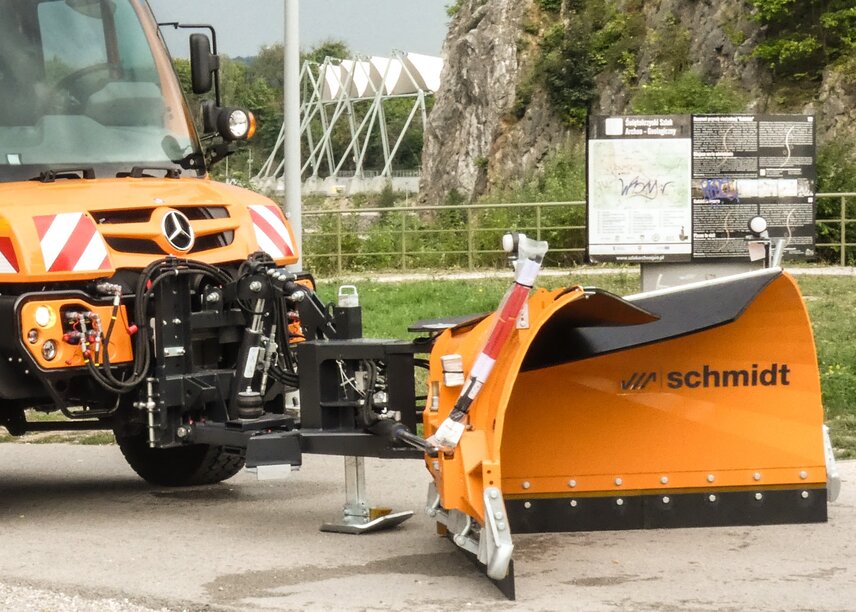

Lifting and angling device

The user-friendly, three-link lifting device guarantees tension-free lifting, while adjustable top links ensure optimum roadway adjustment. As an option, a hydraulic slope compensation system can be fitted to align the snow plough in a horizontal position, perfect for clearing pavements with an inclined vehicle. Generously dimensioned hydraulic cylinders with overload protection allow infinitely variable adjustment.

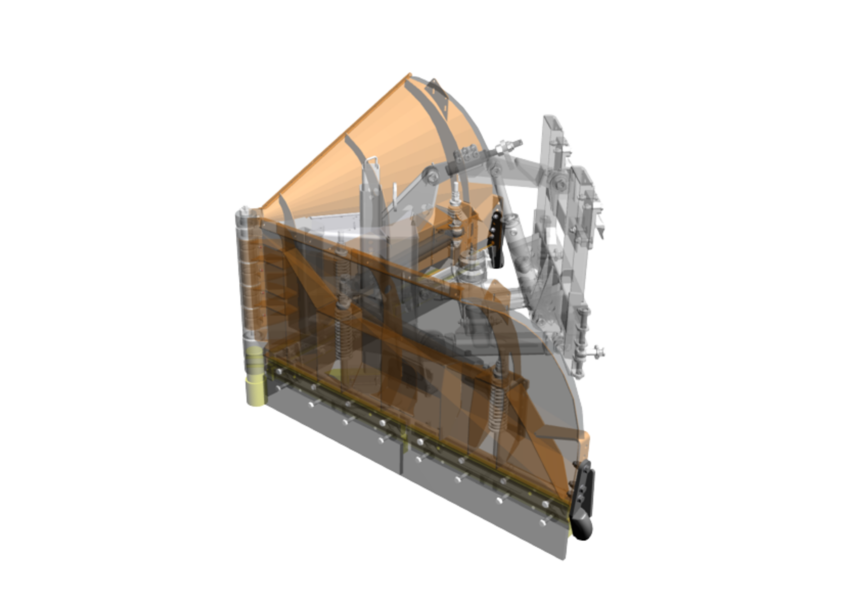

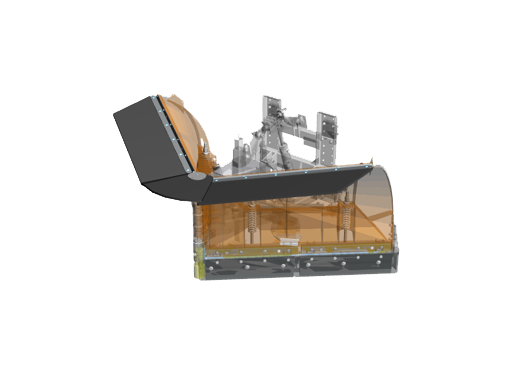

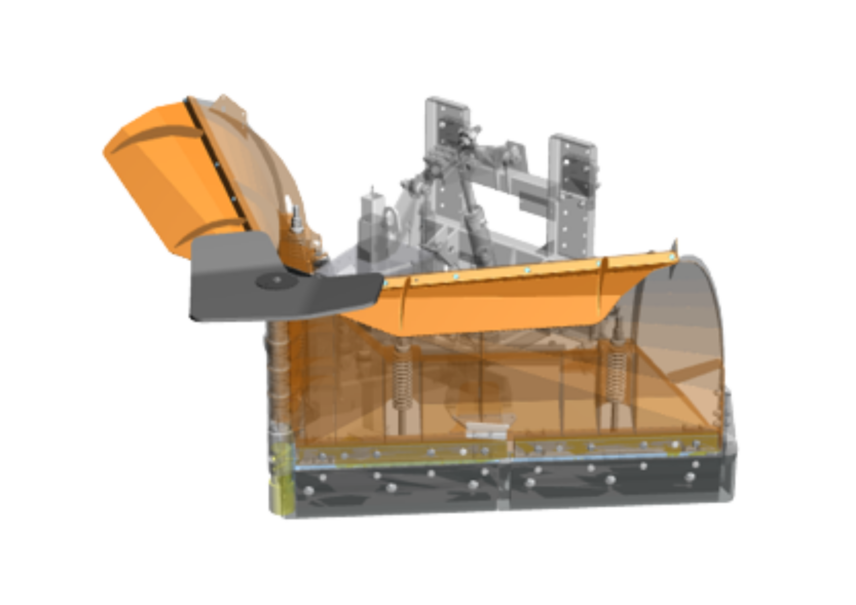

Side deflector

Lateral deflectors prevent damage to the plough body when working on solid obstructions, such as the walls of buildings.

Mounting

For optimum positioning of the snow plough on different vehicles, the mounting plate is height adjustable and can be attached to vehicle plates size 3/5. A wide range of mounting adaptations for wheel loader and tractors are available.
