The CP is a single-bladed rotary flap snow plough ideal for winter maintenance in towns and cities, and surrounding roads. It can be mounted on implement carriers, tractors and trucks and is perfect for clearance of large amounts of snow.

Schmidt|CP

Highlights

  • Ideal for large amounts of snow
  • Stable and robust construction with low weight
  • Hydraulic plough relief
  • Fully automatic override system

Your benefits

  • Thorough snow removal: The special blade shape and its large inclination guarantee a very clean snow removal.
  • Flexible use: Can be used for both hard and soft snow removal.
  • Stability: Robust construction with low weight.

Plough blade

The CP has a special blade shape with a high degree of inclination that guarantees a clean snow flow with short placement at low clearing speed, and wide snow distribution at high clearing speed. The torsion-resistant and stable box construction guarantees a very high stability at low weight. To minimise the amount of road salt, the CP delivers aggressive and very thorough clearing due to the 13° angle of attack of the cutting edge

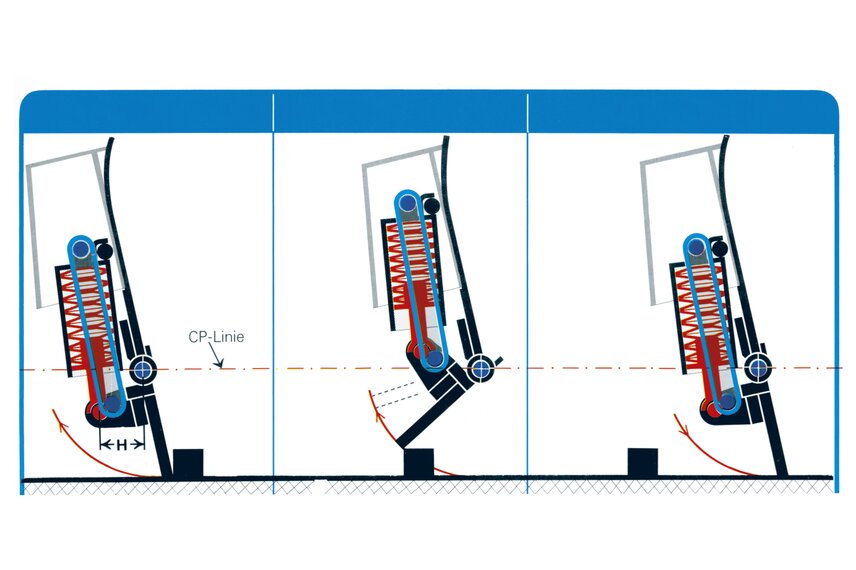

Override security system

The CP is equipped with a fully automatic, robust override system for safe clearing operations without interruption. Rotary flaps with scraper strips, pre-tensioned by disc spring assemblies, give way to the rear when approaching obstacles and then spring back into the normal position, while the height of the plough remains constant and allows uninterrupted  snow clearance.

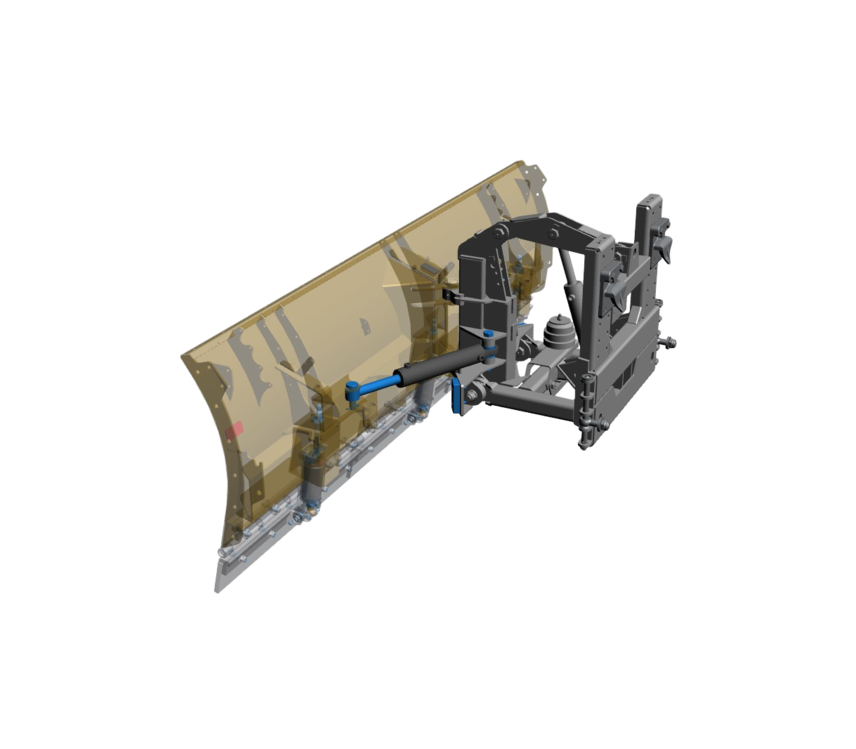

Lifting device

three-point lift, with automatic transverse tilt compensation, enables the plough to be raised and lowered accurately with precision. A swing device moves the plough automatically between working and transport positions.

Hydraulic system

A pressure relief valve mounted on the lifting cylinder reduces the pressure on the ground and protects cylinder and snow plough from overload. A lowering brake valve slows the plough during lowering, but lifts it at full speed.

The hydraulic lift and swivel cylinders are made of stainless steel piston rod for improved resistance, while the share stop is made from noise and vibration-reducing polyurethane for greater efficiency.

Mounting

For optimum positioning of the snow plough on different vehicle plates, the device plate is height-adjustable and can be attached to vehicle plates according to DIN Form A or B, plus plates with the national standards of Switzerland, Austria and France.

Options

  • Kerbstone deflector
  • Impellers
  • Parking trolley with wheels
  • Adjustable snow dust protection
