Arctic｜HMX

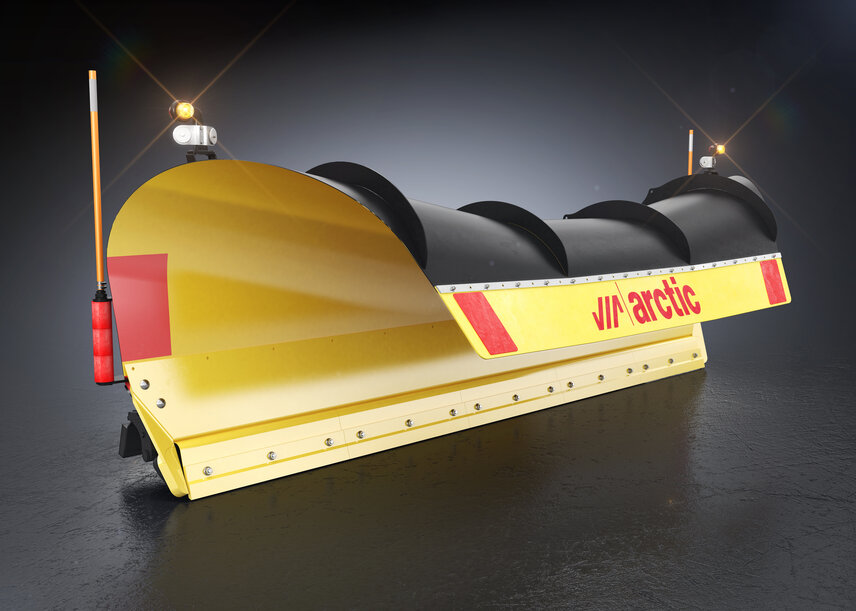

High availability is a necessity for any road ploughing job, and the HMX snow plough meets this requirement perfectly. During snow ploughing, the ploughing angle can be adjusted continuously.

HMX-lumiauran kestävä siipi on valmistettu vahvasta teräksestä, jolla on hyvä kemiallinen ja korroosionkestävyys sekä erinomaiset kesto- ja kulutusominaisuudet. Yhdessä erittäin vahvan teräksisen rungon kanssa lumiauran siipi kestää äärimmäisiä pitkittäis- ja sivusuuntaisia voimia, mikä luo suuren turvallisuustekijän ja pitkän tuotteen elinkaaren. HMX:llä on muuttuva geometria varmistaen erinomaisen lumensiirron sekä tehokkaan lumivallin leikkaamisen. Joustava lumiauran terä koostuu 4-5 osasta, jotka seuraavat tien pintaa yksilöllisesti ja takaavat täydellisen puhdistustuloksen.

The T2 double blade is designed for highly efficient wet snow and slush removal. It is operated with double-acting hydraulic cylinders and closely follows the road surface together with the main wheel. The T2 is divided into sections that follow the road surface independently, providing a perfect finish and significantly reducing the need for salt to melt the snow. The compression force of the T2 twin blade is factory set to allow the operator to fully concentrate on the job.

The iFlex spring steel acts as an overload protection, made of polyurethane with a longitudinal elongation coefficient of 300%. In the event of a collision, the spring blades bend backwards and slightly lift the snow plough up to go around the obstacle before returning to their working position. All this happens even without the need to support the snow plough with feet or wheels. iFlex is completely maintenance-free.

The iFlex flexible blade enables clean and quiet ploughing, reducing environmental noise in residential areas and allowing work to be carried out at night without disturbance.

The HMX lifting device is equipped with lifting arms that are vertical, horizontal and crossed. All joints of the cantilever arms are fitted with bronze bearings with grease nipples, and the black riveted pins are 35 mm thick for greater durability and longer service life. The plough is fitted with one powerful lifting cylinder and two synchronised turning cylinders with safety valve. The entire lifting device acts as a safety device in the event of an accident, absorbing the energy of the impact and thus protecting the machine operating the plough.

The plough blade turns 42 degrees to the left and right by means of two double-acting cylinders. The cylinders connect the lower part of the wing to the plough's push frame, providing the best pushing power while maintaining the stability of the snow plough during operation.

The HMX has kerb protection on both the left and right, which helps it to operate in urban areas and near roadside wells without risk of damage.

Made of durable and flexible polyurethane, the wing-shaped splash guard helps to roll snow inside the wing and move it quickly and accurately to the side. This prevents snow from flying onto the windshield and mirrors, making plowing safe and comfortable.

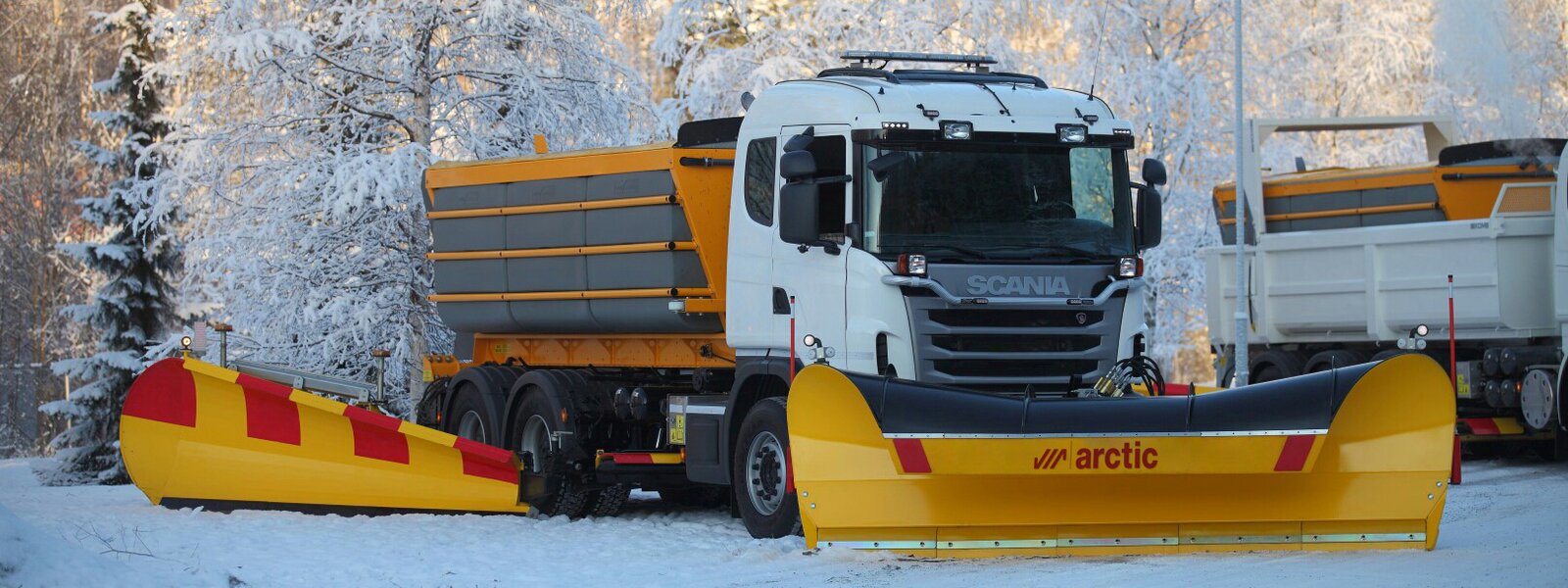

The HMX plough is available in a range of fit options to allow it to work effectively on a variety of basic machines such as trucks, tractors and wheel loaders.
