Aebi｜CC 150 / CC 160
- Maximum safety on challenging terrain thanks to the infinitely variable hydrostatic traction drive and active steering
- Versatile in use with an extremely wide range of attachments, 365 days a year
- Easy handling combined with an efficient drive train
- State-of-the-art Vision Control operating concept for optimised machine control and data acquisition capability
- Working and user comfort: The vibration-dampened steering bar, the option of active steering using the column or hand lever, effortless steering and height-adjustable steering bar (even when driving) made for pleasant working.
- Safety: Active, smooth steering, fingertip speed control and an electromagnetic clutch provide a safe driving experience on any terrain.
- Maximum efficiency: The infinitely variable speed control and the fuel-efficient drive units allow for maximum efficiency. Even high-power attachments can be used thanks to the mechanical implement drive and the high efficiency.
The Combicut has two variable displacement pumps and two hydraulic motors. They are controlled individually – mechanically using the steering bar and electronically using the drive lever. Applying light pressure on the steering bar to the right causes the machine to turn to the left. This hydrostatic steering assistance makes the Combicut very intuitive, with minimal effort required on the operator’s part.

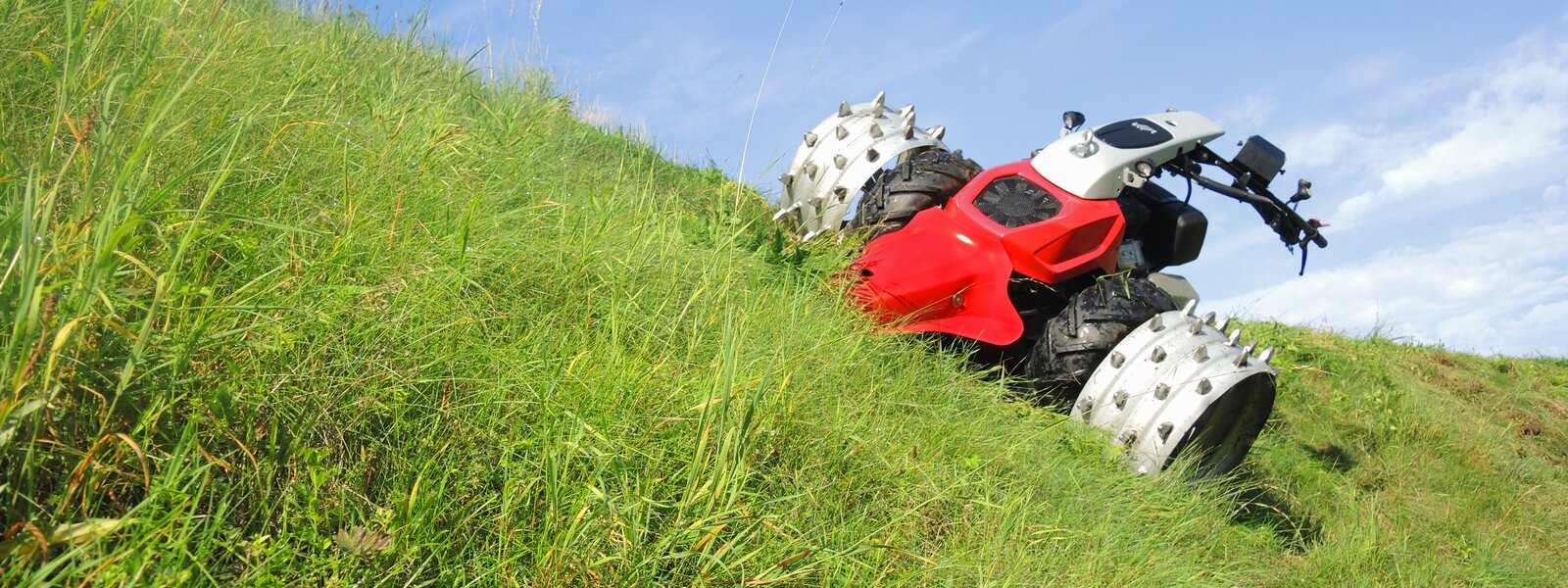

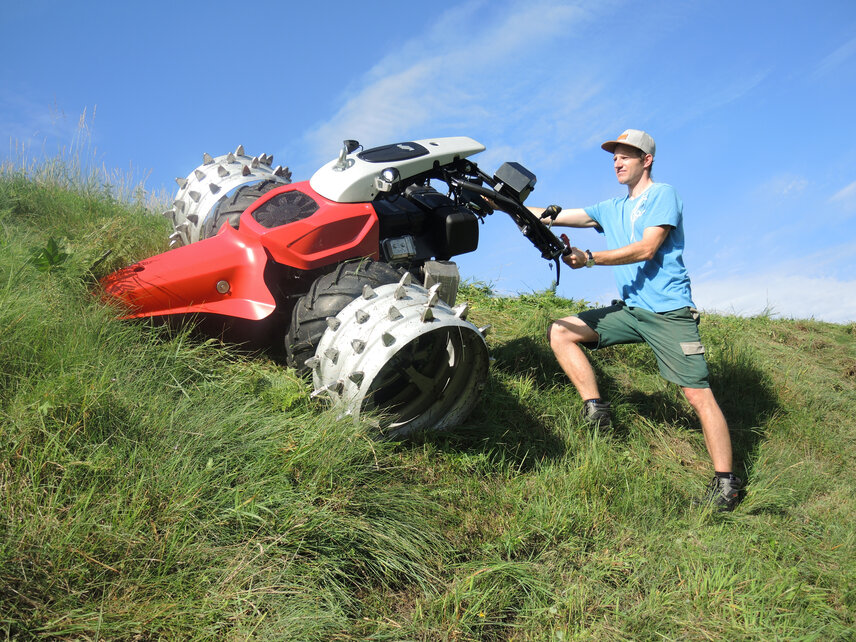

This means that no energy is lost when steering, simply that the drive to the wheels is varied. The machine therefore stabilises itself, even on steep slopes, with no effort on the operator’s part. The turning manoeuvre around its own axis can be performed with ease. The ingenious concept of the different wheel rotation directions means that the Combicut can be turned on the spot. This manoeuvre guarantees maximum soil protection off-road with maximum stability.
Active steering can be blocked on the CC 150 (and also on the CC 160 as an option). Still, the advantages of active steering can be used via the hand lever (left and right). This ensures the machine’s directional stability, even during work on steep slopes with heavy attachments.
The Combicut drive lever is yellow and easy to use. Moving your thumb forwards or backwards slightly is enough for the machine to start moving, following your commands exactly. The continuously variable speed and direction of travel selection are right under the thumb. When reversing, the drive lever automatically returns to neutral when released, ensuring safety. With the CC 160, the optional 10-step tiptronic additionally increases operating comfort and enables even more precise work. Combined with active steering, which responds to light sideways pressure, the simple operation gives a superior level of driving and operating comfort.

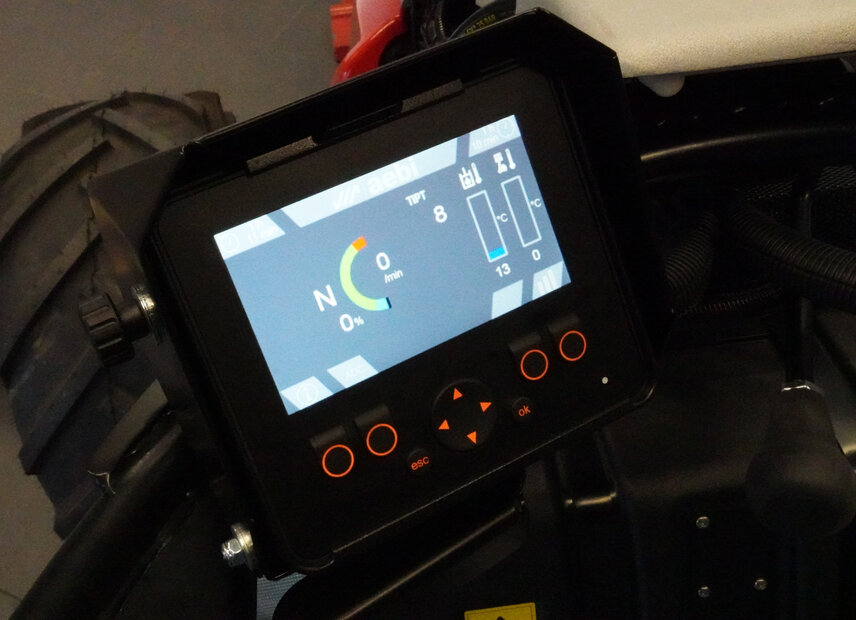

The optional HMI Premium system with 4.3” graphic display means all usage data can be viewed at any time. The data collected means that the display can also be used as a service and analysis tool.
The attachments are driven mechanically using the tried-and-tested Aebi quick coupling. This mechanical drive is the core of an efficient drive train, as the attachments are driven with next to no loss in performance. The resulting high level of efficiency leads to increased productivity and thus cost savings.

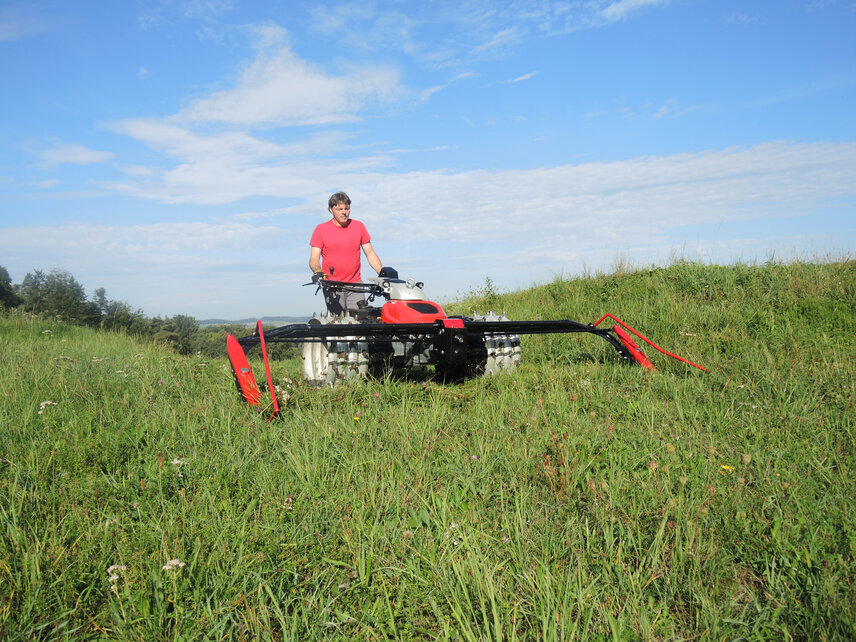

Without a shadow of a doubt, the Combicut’s speciality is mowing. Depending on the model, working widths of 1.45 to 3.10 m are possible. A large number of individual tyres ensure excellent performance on steep slopes. The quick-fit connector system allows a variety of attachments to be used. Working with mulch using the flail mower or clearing snow with the snow plough or the snow blower are other options that significantly increase the usage rate for the basic machine. The single-axle machines are comfortable to operate and enormously versatile.

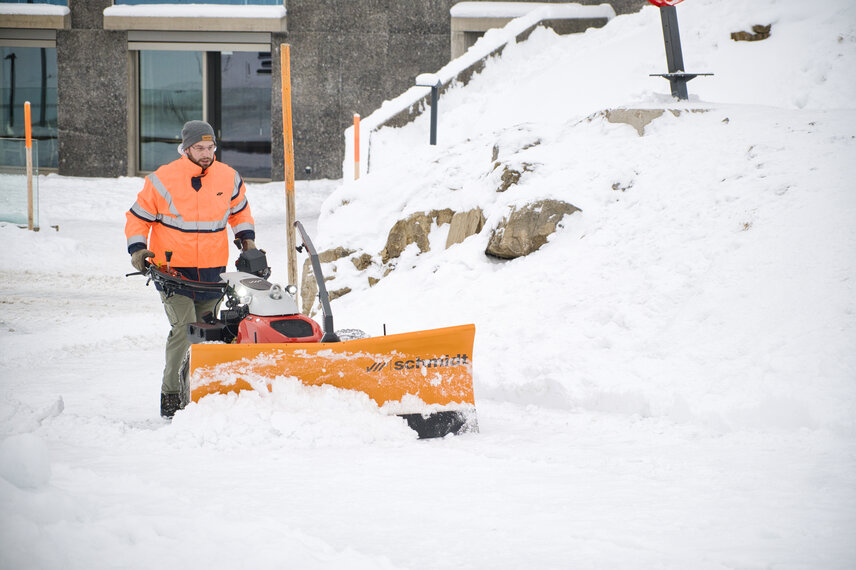

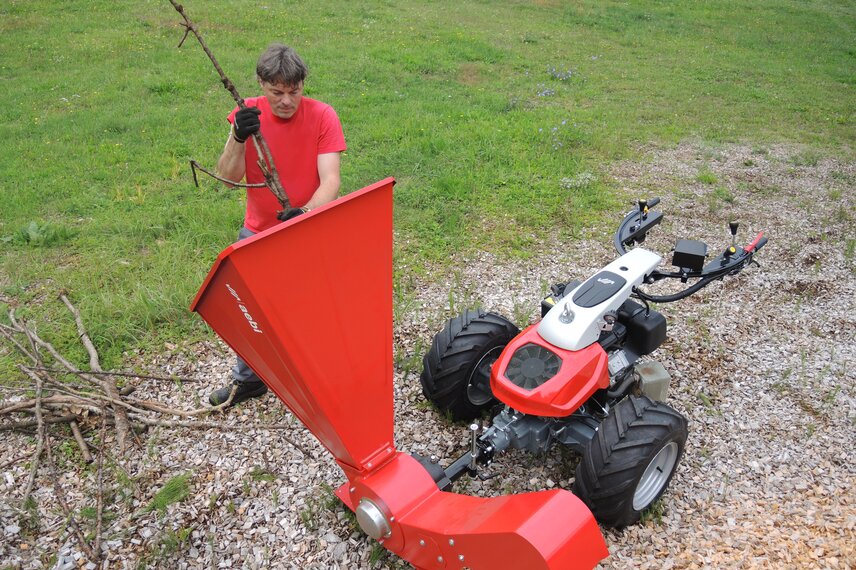

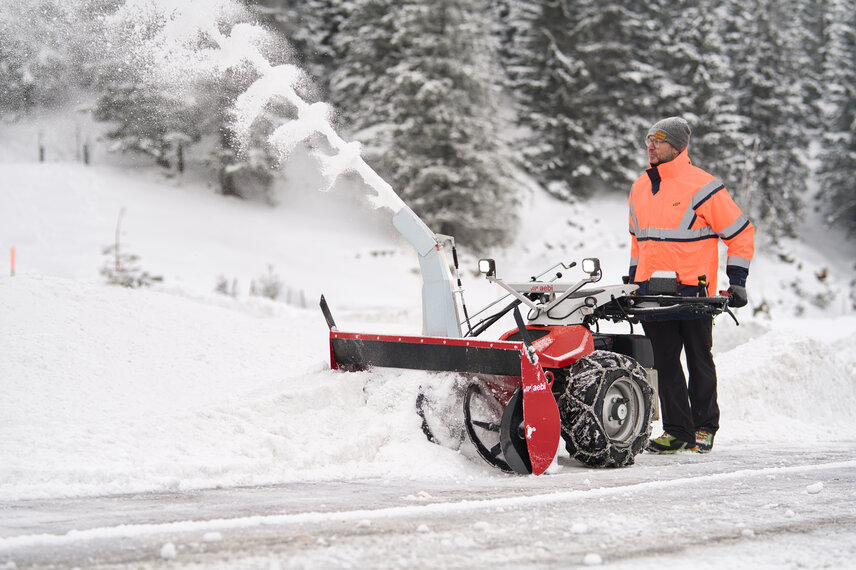

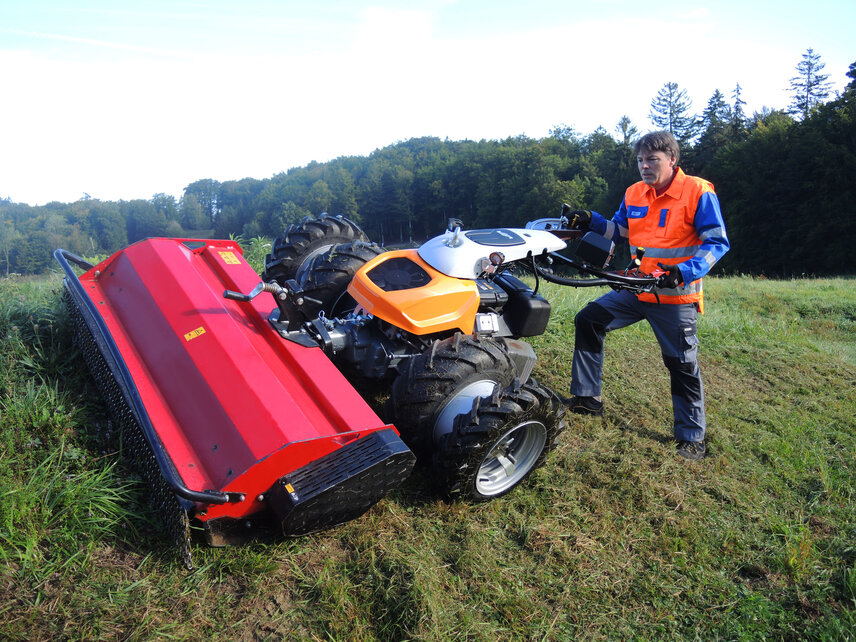

For work on green spaces on difficult or steep terrain or on delicate ground, the single-axle machines offer nothing but advantages. The wide range of attachments and the ease with which the machine can be operated ultimately result in high level of working efficiency. In addition to mowing using a fingerbar, gantry, flail or sickle mower, a wide variety of other attachments can also be used thanks to the quick-fit connector system. The attachments can be changed quickly and without any need for tools. Snow plough, snow blower, sweeping brush, sweeper, weeding brush, rotary harrow – there are virtually no limits to the variety of different attachments, making the Aebi Combicut a genuine all-rounder. And extra coats on the hydraulic lines mean protection against corrosion during winter maintenance work too – under the toughest conditions.
To find out more about attachments, visit https://www.aebi-schmidt.com/en/products-solutions/ more/#aebi-combicut-attachments.
