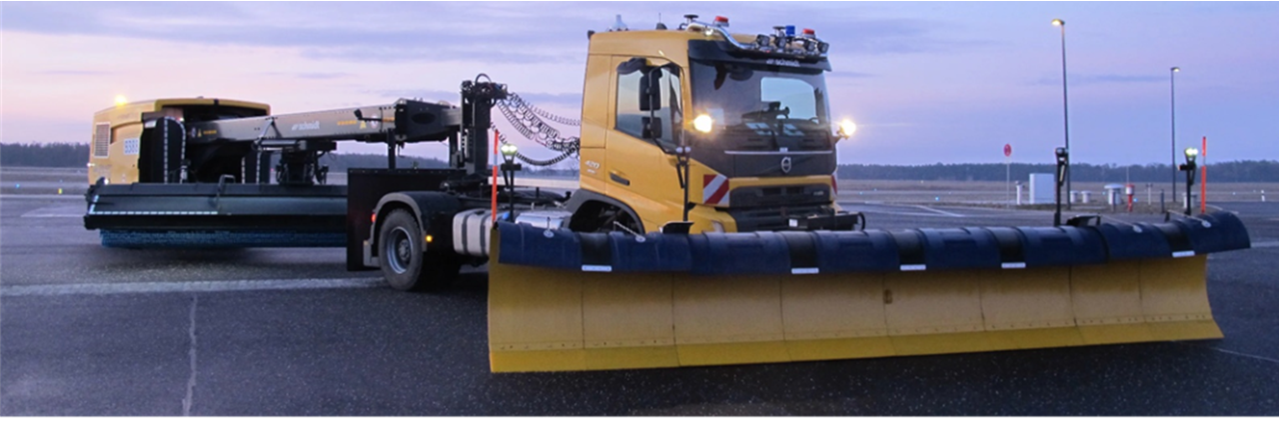

Schmidt | TJS 630 Towed Jet Sweeper
Airport snow plough / Volvo FMX| Offer number: | UM3451966 |
| Brand | Schmidt |
| Material number: | 1365439-7 |
| Year of manufacture: | 2022 |
| Serial number: | 76-12-003 |
| Utilization (h): | 10 h |
| Classification: | Class 4 |
| Color: | deep orange |
| Location: | Germany 79837 St. Blasien |
| Availability: | 10 Aug 2026 |
| Price: | On request |
Machine details
The offered TJS 630 got used as a demo machine very intensively. The machine has been used a lot and is kept in very good shape, showing normal wear. The machine is operated via the control panel inside the driver´s cabin of the Volvo FMX 4x2 with Hydraulic Front Wheel Drive (HFWD). The driver has a very good overview of the machine.
Equipment
| Basic machine | |
|---|---|
| 244817 | Towed Jet Sweeper TJS 630, long with steered axle |
| 379155 | Telematics: Modem kit including 1 year IntelliOPS standard license |
| 751843 | Driver assistance system (EM 5, Tier 4 final, EM 3A / EFP (Downgrade)) |
| Vehicle | |
|---|---|
| 268156 | Auxiliary engine Volvo TAD1183VE, EuroMot 5, 315 kW / 428 HP (TJS 560 / 630) |
| 296816 | Cold package: Cooling water preheat aux. engine and hydraulic tank heating |
| 984043 | Battery charger (TJS 630, only in combination with 296816) |
| 892619 | Central lubrication system for brush, lifting device, blower nozzle (TJS) |
| 412186 | Fire extinguisher, 6 kg/ 13 lb US (TJS) |
| 875233 | Spare wheel complete (rim and tyre) for TJS, size 385/65 R 22,5 |
| 958405 | 5th wheel coupling in combination with steered axle (semitrailer) |
| Cabin | |
|---|---|
| 254830 | Extension wire for IFM operator control panel (CJS/ CJS-DI/ TJS) |
| Clearing unit | |
|---|---|
| 664336 | Steel brush (cassette system), 21 pieces, diameter 1,014mm / 40 (TJS 630) |
| Paintwork | |
|---|---|
| 521020 | Paint (upper part RAL 1004, lower part RAL7021) (TJS) |
| 350742 | Special paintwork for frame rails (one RAL color) (TJS) |
| 947082 | Complete Contour Marking (TJS) |
| 475001 | Warning Marking red / white (TJS) |
| Other extras | |
|---|---|
| 662685 | Winter Lighting TJS, cab front, H3, (Volvo FMX) |
| 350141 | Rear view camera, preparation in the truck |
| 1354677-2 | Balance weight FMX 4x4 air suspension |
| 1341604-7 | Work lighting Volvo FMX roof LED |
| 0316544-6 | External starting socket truck, TJS NATO 2-Pin |
| Towing unit | |
|---|---|
| Mounted to Volvo truck FMX SZM 4x2, air suspension | |
| Modification towing unit | |
|---|---|
| 657066 | Modification towing unit (TJS, Volvo - FMX- semi-trailer) |
| Snow plough | |
|---|---|
| 535718 | Airport snow plough MS 72.2 N-K |
| Required cutting edge | |
|---|---|
| 684279 | Slush cutting edges PUR (set) |
| 717951 | Secondary cutting edge for removal of residual snow |
| Other required options | |
|---|---|
| 487206 | Castor wheels with pneumatic tyres (set), heavy-duty version |
| Optional extras | |
|---|---|
| 959438 | Snow deflector with blade cover (plastic) |
| 404243 | LumiFog for Airport snow plough (d 30 mm) |
| 966855 | Towing mouth in blade segment |
| 575275 | FOD - securing of the snow ploughs springs |
| 664111 | FOD - securing of the second cutting edges springs |
| Free options | |
|---|---|
| SSRXXX | Special colour RAL 1004 (only plough blades) |
| 798727 | Warning marks red /yellow |
| SSR_0881 | Lubrication MS 72.2 N-K |
