Arctic|Snow plough|HMD
- The 75 degree blade angle is perfect for clearing snow and ice without damaging road markings or the road surface.
- In a high-speed snow plow, the wing works well and extra snow jets don't obstruct the driver's view, thanks to the 42-degree turning angle and deep wing design.
- Removing slush with the T2 twin blade is comparable to brushing. The T2 twin blade enables high-speed shovelling, saving time and fuel.
- The height and design of the wing allows the plough to throw snow over 1.5 - 2.0m banks.

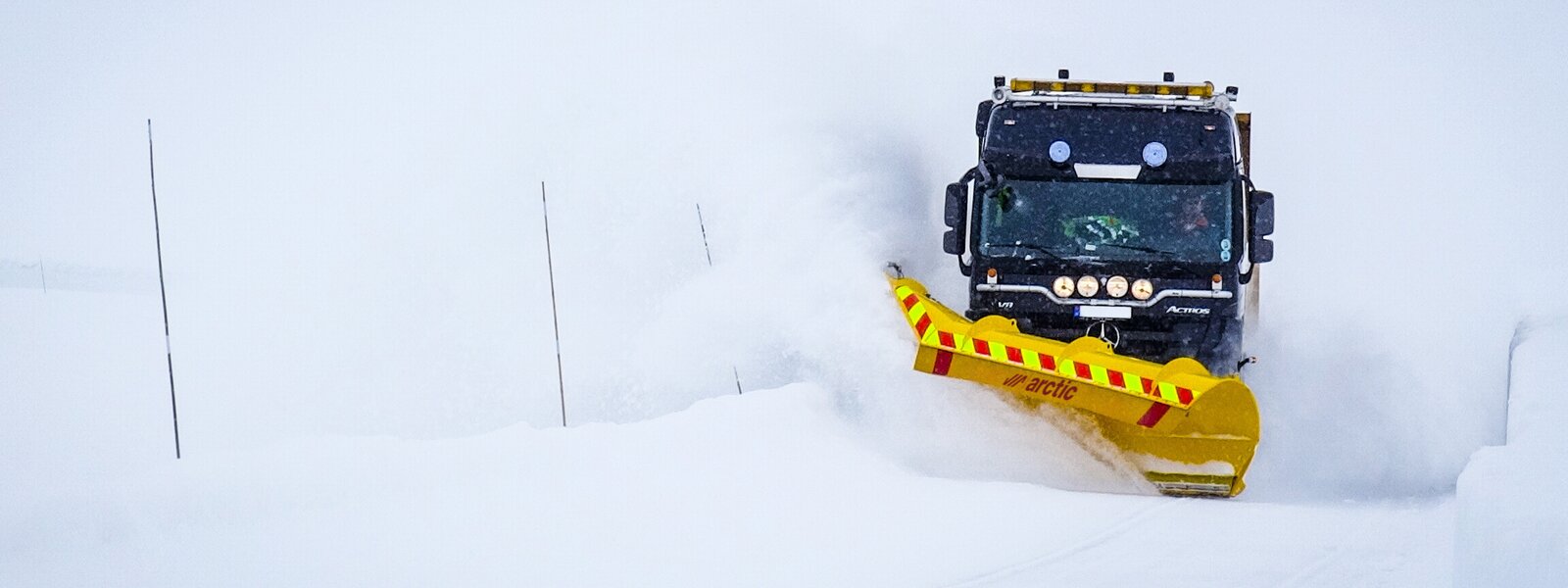

Fast and agile snow plough
High availability is a necessary factor in all road ploughing operations, and HMK snow ploughs meet this requirement perfectly. During snow ploughing, the ploughing angle can be adjusted continuously.
Aura wing
The durable wing of the HMK snow plough is made of strong steel with excellent durability and wear properties. Combined with a very strong steel frame, the snow plough blade can withstand extreme longitudinal and lateral forces, which is a safety factor and gives the product a long service life. The HMK wing is designed for correct ploughing, especially in snowy areas. The flexible snow plough blade consists of 4-5 sections that follow the road surface individually and guarantee a perfect cleaning result.
Twin blade T2
The T2 double blade is designed for highly efficient wet snow and slush removal. It is operated with double-acting hydraulic cylinders and closely follows the road surface together with the main wheel. The T2 is divided into sections that follow the road surface independently, providing a perfect finish and significantly reducing the need for salt to melt the snow. The compression force of the T2 twin blade is factory set to allow the operator to fully concentrate on the job.

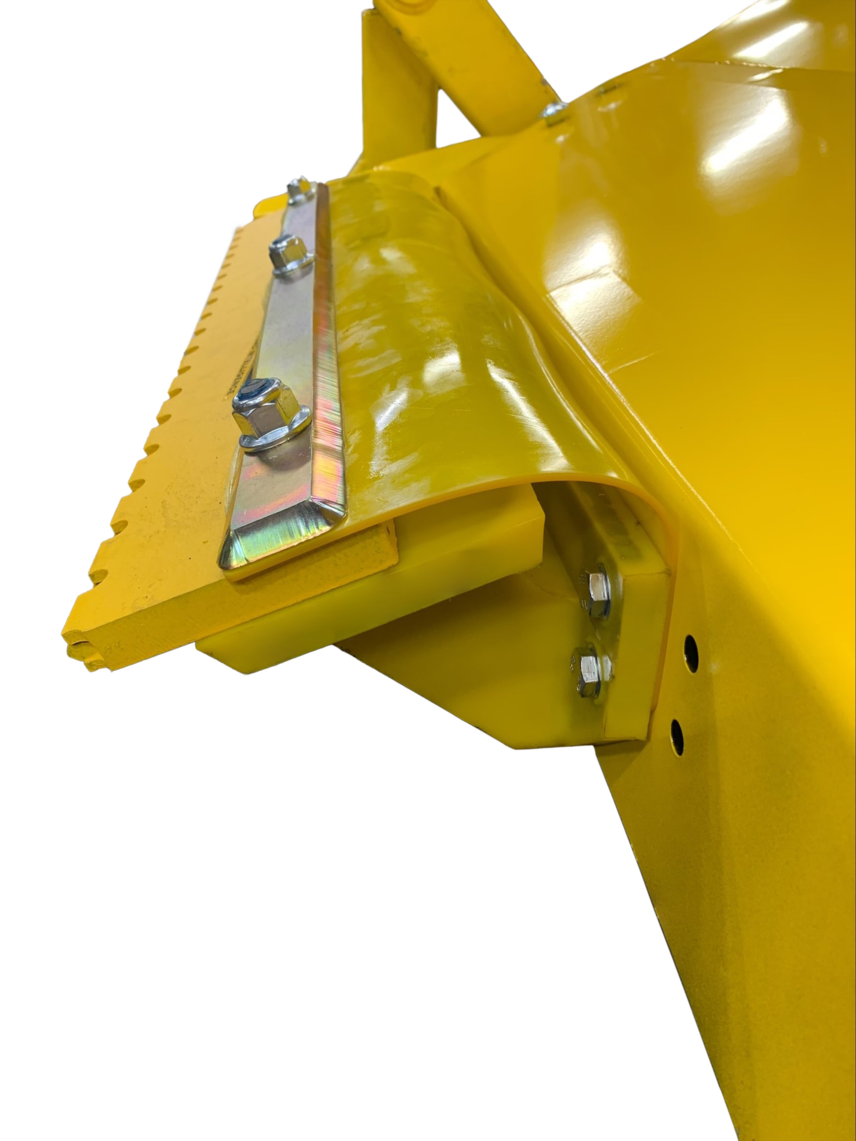

Override safety system with iFlex
The iFlex blade components work as override safety device. Made from polyurethane with a longitudinal stretch ratio of 300%, the components bend backwards and slightly lift plough up, forming an angle to by-pass an obstacle, before returning back to an aggressive attack angle. All these movements occur without need of plough support, and the iFlex is completely maintenance free.
Silent ploughing
The iFlex flexible blade enables clean and quiet ploughing, reducing environmental noise in residential areas and allowing work to be carried out at night without disturbance.
Lifting device
The HMK lifting device is equipped with lifting arms, which are vertical, horizontal and crossed. All joints of the cantilever arms are fitted with bronze bearings with grease nipples, and the black riveted pins are 35 mm thick, ensuring greater durability and longer service life. The plough is fitted with one powerful lifting cylinder and two synchronised turning cylinders with safety valve. The entire lifting device acts as a safety device in the event of an accident, absorbing the energy of the impact and thus protecting the machine operating the plough.
Hydraulic torsion system
The plough blade turns 42 degrees to the left and right by means of two double-acting cylinders. The cylinders connect the lower part of the wing to the plough's push frame, providing the best pushing power while maintaining the stability of the snow plough during operation.
Kerb stone protectors
HMK treads at both ends of the wing help when working on roads with railings and protect the plough and railings from damage.
Splash guard
Made of durable and flexible polyurethane, the splash guard, which follows the shape of the wing, helps to roll snow inside the wing and move it quickly and accurately to the side. This prevents snow from flying onto the windscreen and mirrors, making plowing safe and comfortable.
Attachment of the plough
The HMK plough is available in a wide range of configurations to allow it to work effectively on a variety of basic machines such as trucks, tractors and wheel loaders.
Accessories
- T2-two-cylinder
- Foot control devices
- Gel-filled wheel set
- Edge marker sticks
- Side rollers with edge marker sticks
- Various wear plates
- LED lights with reflectors Flashing lights
