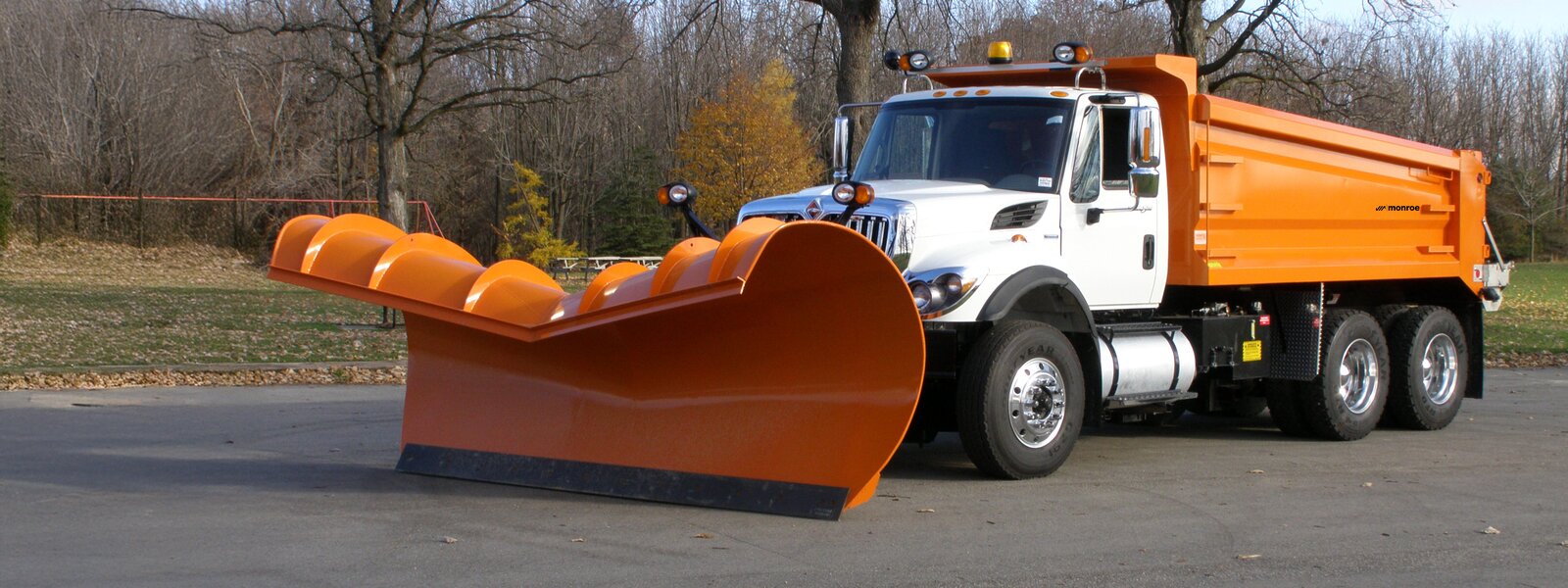

Monroe ｜Snow plough｜Expressway

Designed for rural roads, mountain passes, and expressways, the plow features dual-discharge capability, allowing snow to be cast equally far to the left or right.

Trip Option

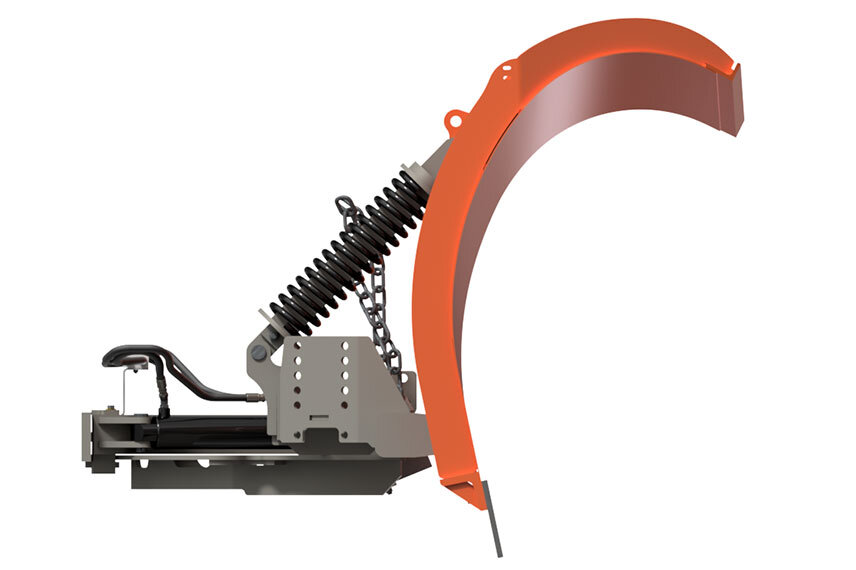

The Expressway-Style plow offers the full trip option which allows the entire moldboard to tilt forward when encountering an obstacle to protect both the plow and the vehicle.

Moldboard Options

The Expressway-Style plow is available with two different moldboard skin options to suit different operational needs:

• 10GA GR50 Steel
• 3/16“ GR50 Steel

Moldboard overhang at center attack angle

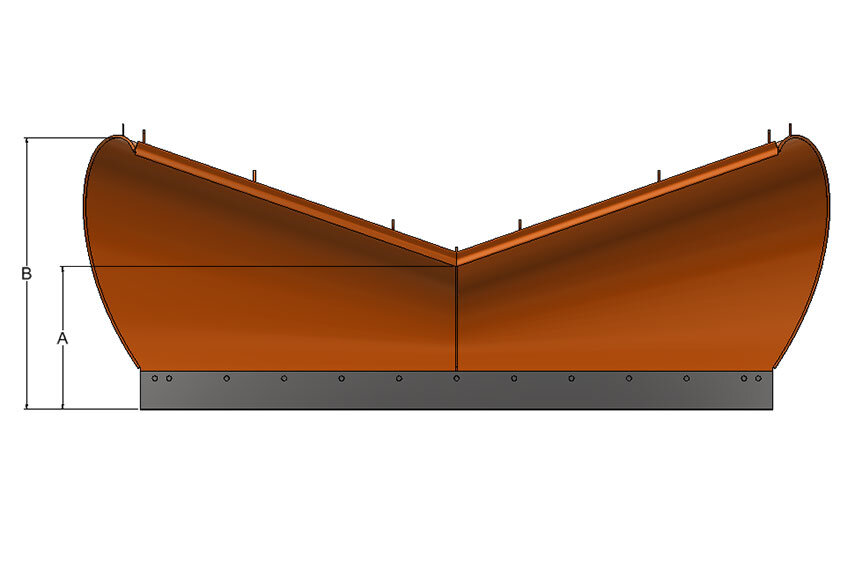

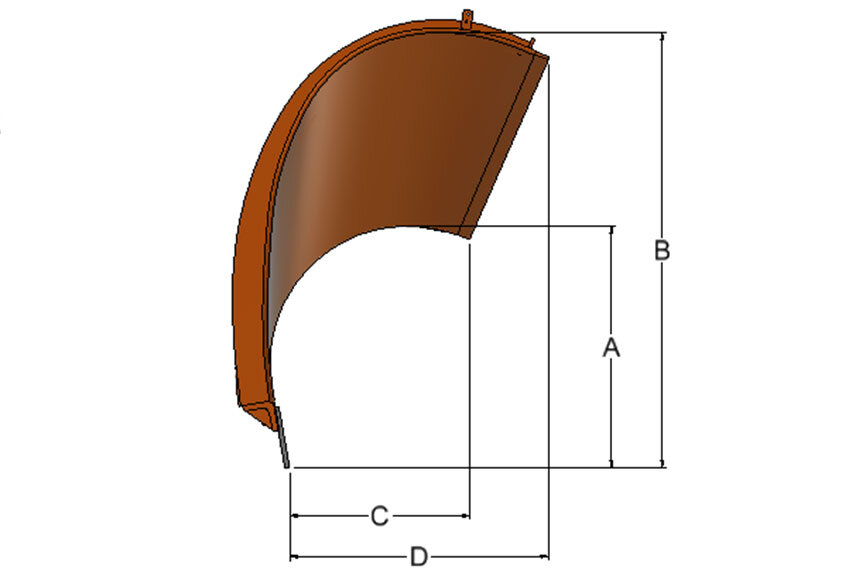

(A = Moldboard Intake Height | B = Moldboard Discharge Height | C = Moldboard Overhang Center | D = Moldboard Overhang Sides)

• 10‘ Models: A 36“ | B 60“ | C 23.5“ | D 32.5“
• 11‘ Models: A 36“ | B 60“ | C 23.5“ | D 33.6“
• 12‘ Models: A 36“ | B 60“ | C 23.5“ | D 34.6“
• 11‘ Models: A 40“ | B 48“ | C 24.8“ | D 24.6“
• 12‘ Models: A 40“ | B 48“ | C 24.8“ | D 24.6“
• 11‘ Models: A 40“ | B 58“ | C 27.9“ | D 43.0“
• 12‘ Models: A 40“ | B 58“ | C 27.9“ | D 44.6“

Designed for high-speed operation on mountain passes, rural highways, and expressways, the High Speed-Style combines an optimized attack angle and slotted trip design to maintain long snow-casting distances in both directions.

Trip Option

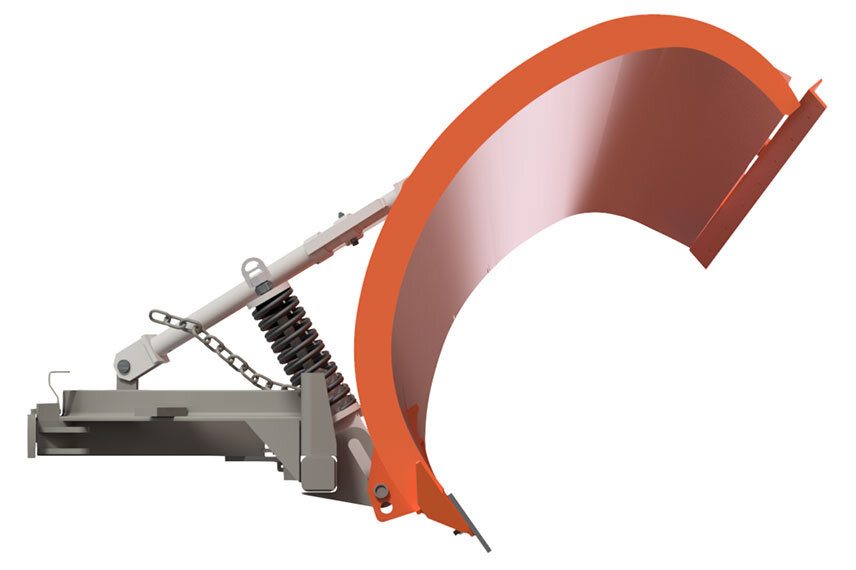

The Expressway High Speed-Style plow offers the slotted trip option which allows the moldboard to slide up into the slots, clear the obstruction and return to the plowing position.

Moldboard Options

The Expressway-Style plow is available with two different moldboard skin options to suit different operational needs:

• 10GA GR50 Steel
• 3/16“ GR50 Steel

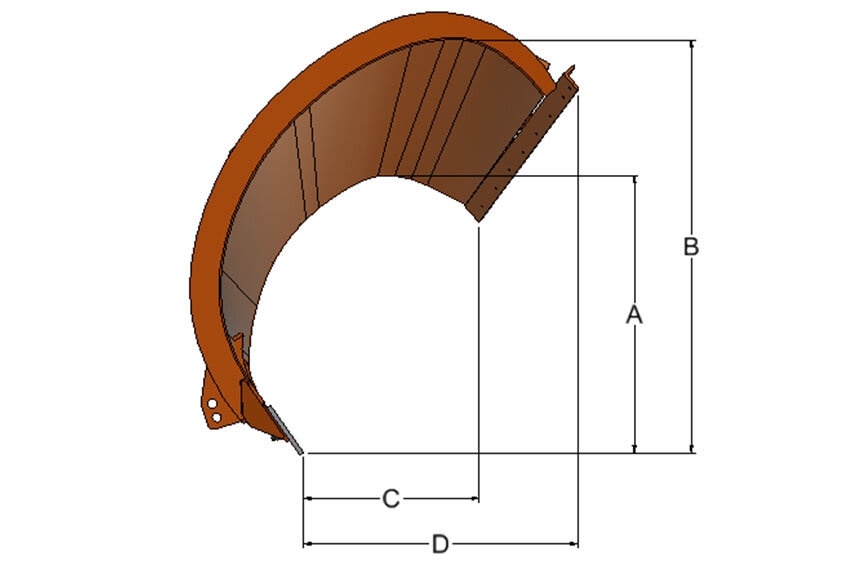

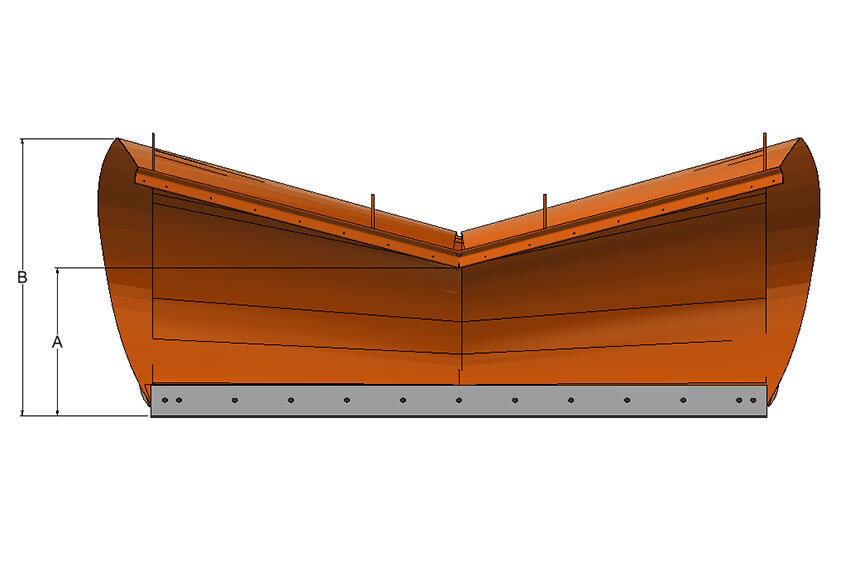

Moldboard overhang at center attack angle

(A = Moldboard Intake Height | B = Moldboard Discharge Height | C = Moldboard Overhang Center | D = Moldboard Overhang Sides)

• 11‘ Models: A 40“ | B 58“ | C 22.6“ | D 36.1“
• 12‘ Models: A 40“ | B 58“ | C 22.6“ | D 37.3“
• 12‘ Models: A 48“ | B 66“ | C 20.6“ | D 33.2“

Designed for multi-lane highways and expressways, the Half Expressway-Style combines the long-distance, one-way snow casting of an Expressway plow with the versatile, general-purpose clearing capabilities of a Straight Blade.

Trip Option

Multiple trip systems are available to protect both the plow and the vehicle:

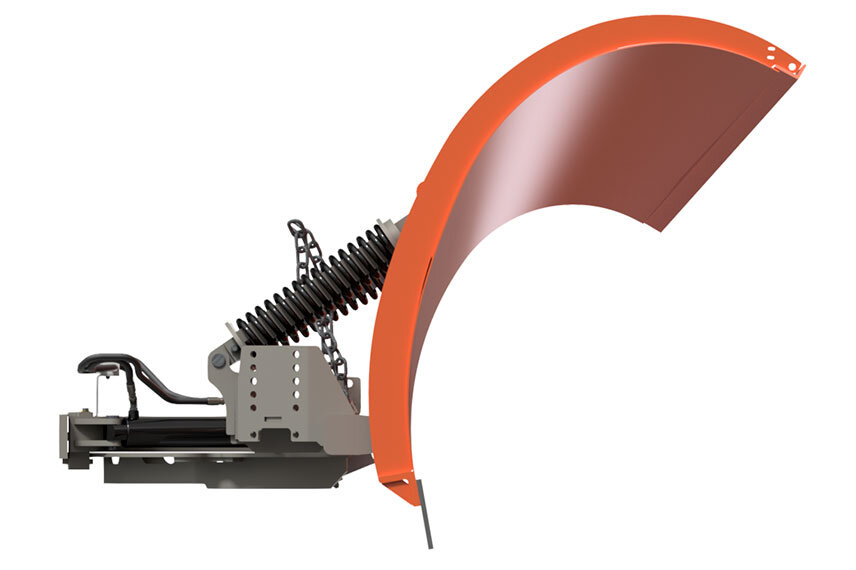

• The full trip option allows the entire moldboard to tilt forward when encountering an obstacle.

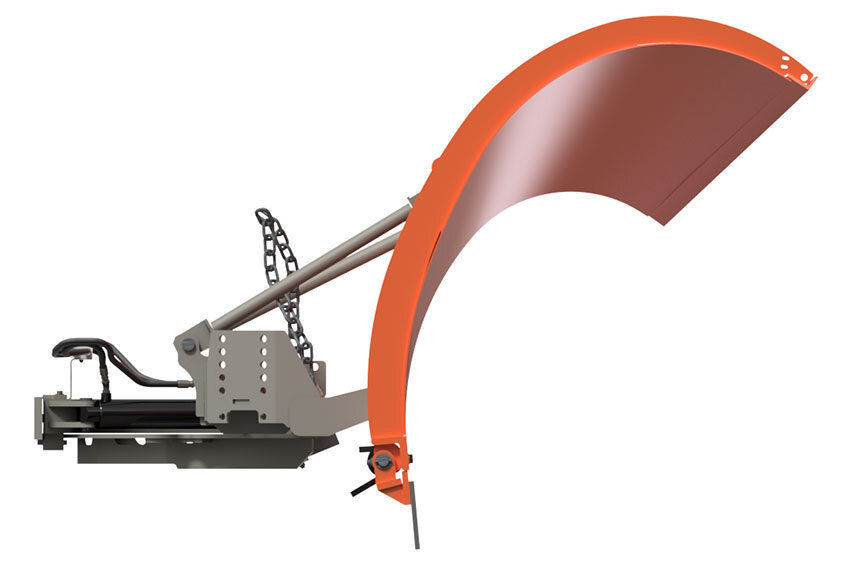

• The trip edge design permits only the cutting-edge sections to fold back.

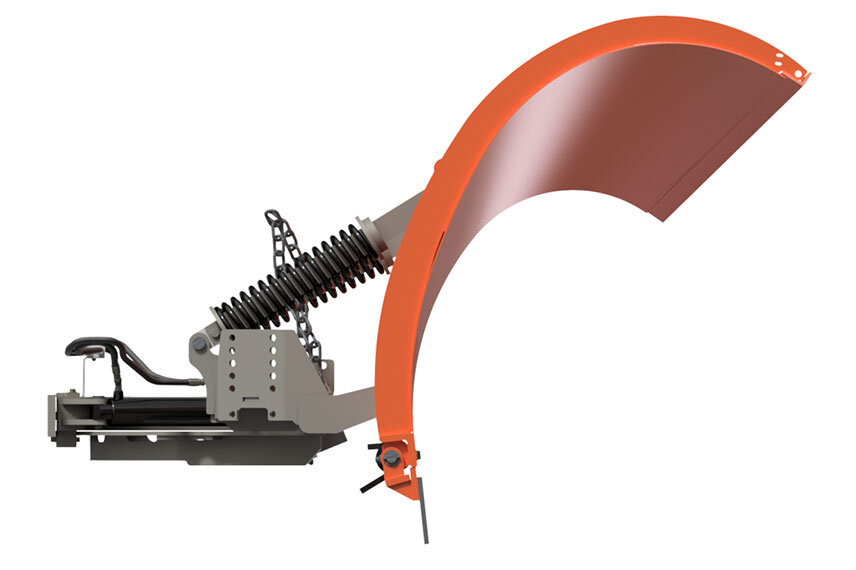

• For maximum adaptability, the dual trip combines both approaches, ensuring smooth operation across challenging surfaces.


Moldboard Options

The Expressway-Style plow is available with two different moldboard skin options to suit different operational needs:

• 10GA GR50 Steel
• 3/16“ GR50 Steel

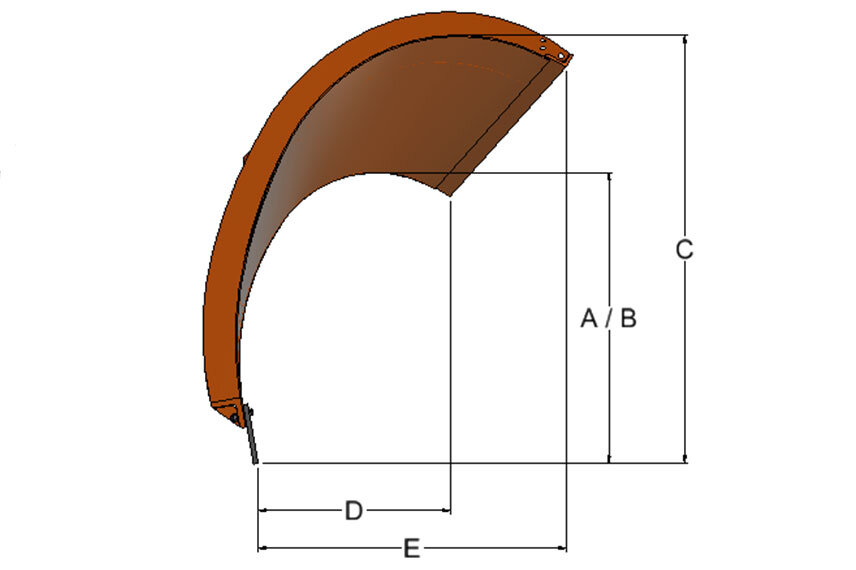

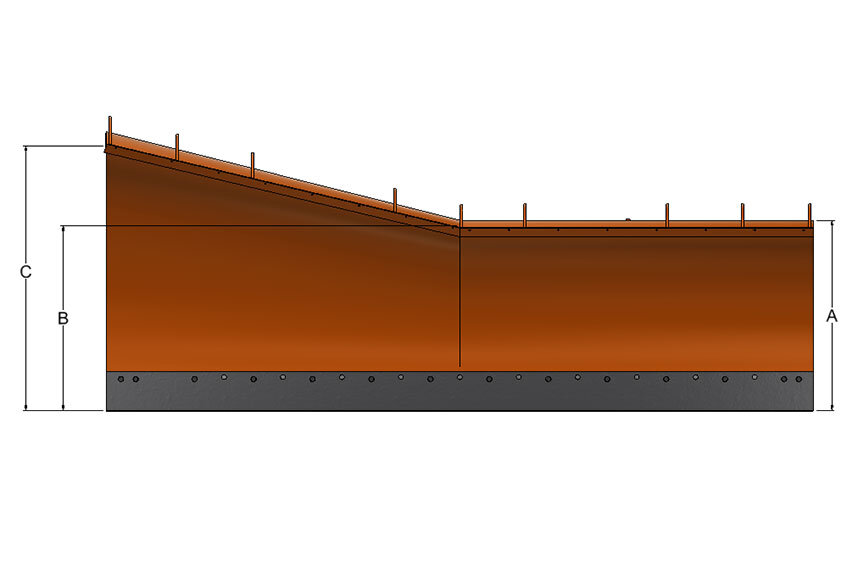

Moldboard overhang at center attack angle

(A = Moldboard Intake Height | B = Moldboard Discharge Height | C = Moldboard Overhang Center | D = Moldboard Overhang Sides)

• 10‘ Models: A/B 42“ | C 60“ | D 28.3“ | E 42.2“
• 11‘ Models: A/B 42“ | C 60“ | D 28.3“ | E 43.6“
• 12‘ Models: A/B 42“ | C 60“ | D 28.3“ | E 45.1“
• 11‘ Models: A/B 39“ | C 57“ | D 25.6“ | E 39.8“
• 12‘ Models: A/B 39“ | C 57“ | D 25.6“ | E 40.9“
• 12‘ Models: A/B 48“ | C 66“ | D 30.4“ | E 40.0“

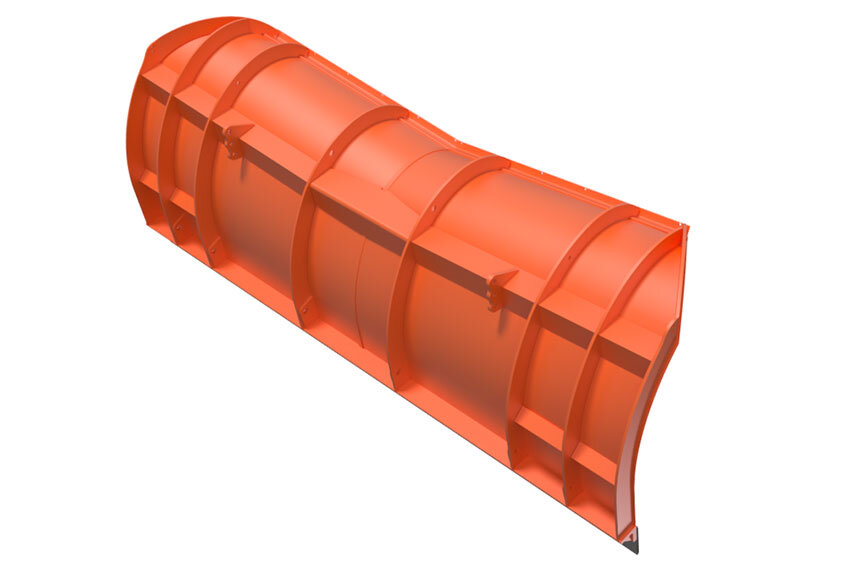

The mailbox trim features a cut-out on the left, right, or both ends of the moldboard, ensuring that when the plow is angled toward the trimmed side, the top end of the moldboard does not extend beyond the plow’s clearing path. This design protects mailboxes and other roadside obstacles from being struck while also enhancing visibility when the plow is angled.

The Expressway plow supports a variety of push frame designs, including the standard reversible frame, the 5“ heavy-duty tube frame, the fixed angle frame, the parallel lift frame, and the slotted trip reversible pushframe, allowing operators to select the configuration best suited to their vehicle and operational needs.

Multiple lift configurations are available, including chain lift, sling lift, and more options. Allowing operators to choose the system best suited to their vehicle and operational requirements.

Optional accessories provide added functionality and customization to meet diverse operational needs: skid shoes, moldboard shoes, snow wheels, curb guards, nose guards, parking jacks, deflector kits, markers, and lighted markers.

Multiple plow-side as well as truck-side hitch configurations deliver flexibility to suit your setup and application:

• Pin
• Quick
• Loop
• Quick link
• Husting hitch
