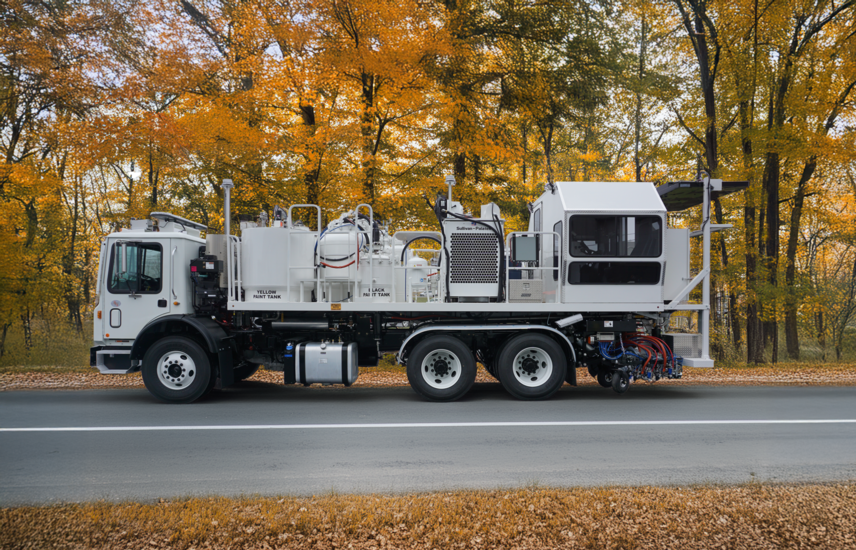

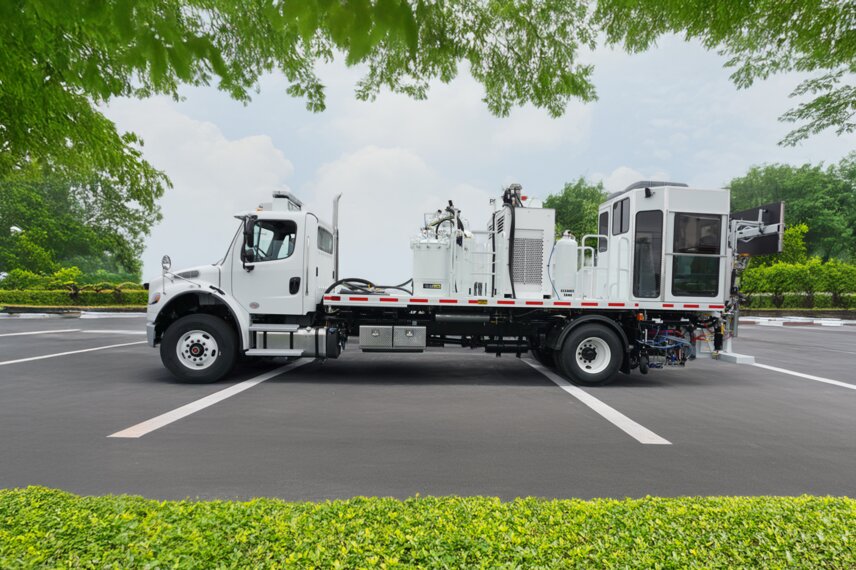

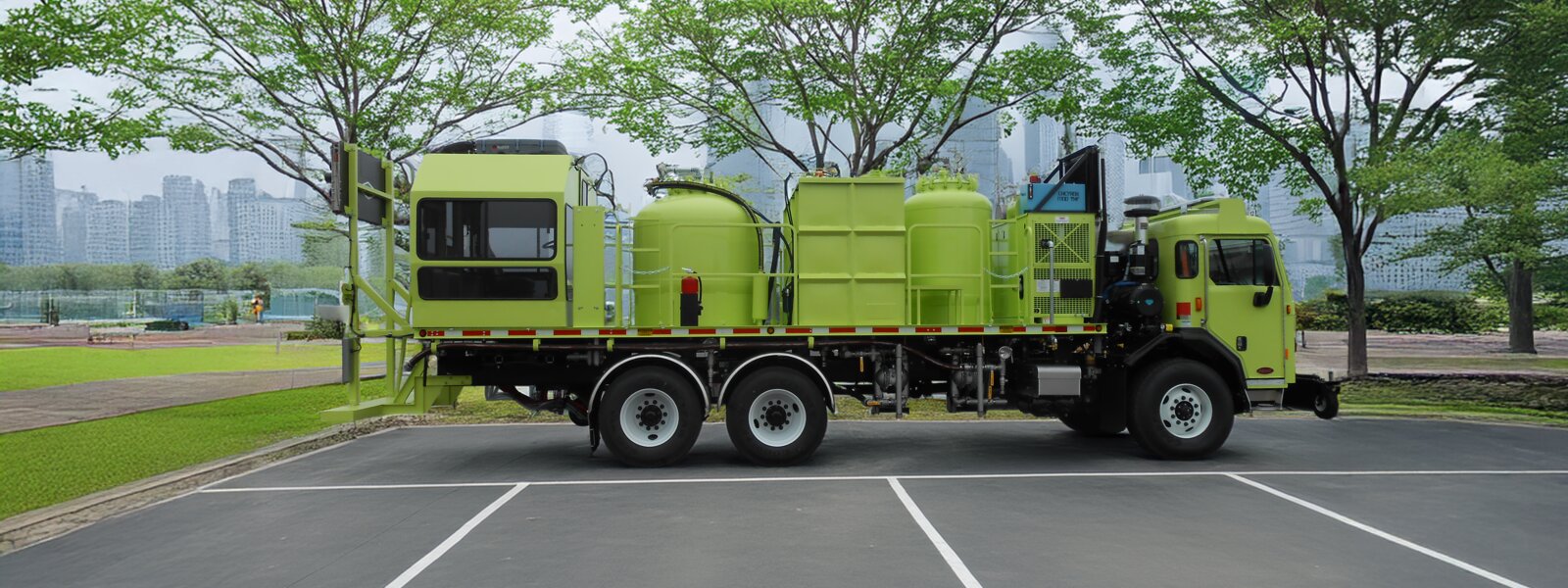

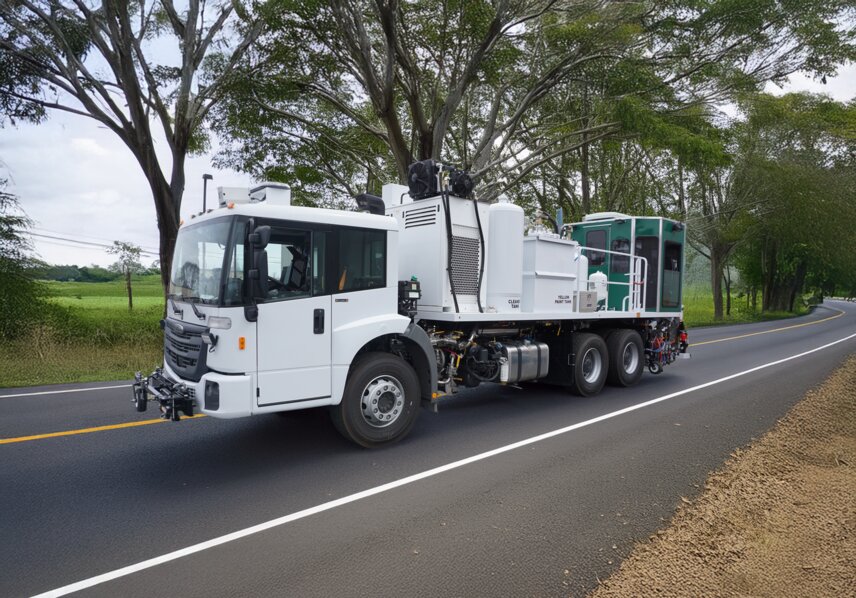

The MB Pumper is an air-atomized paint pavement marking system which uses diaphragm pumps for paint delivery and atomizing air for paint spray. Paint is loaded into non-pressure stainless steel round/rectangular, or paint-manufacturer-supplied tote tanks by diaphragm pumps from a paint source. Paint is then delivered to the paint spray guns by diaphragm pumps. Inside the air atomized paint guns, atomizing air is injected into the paint stream, atomizing the paint into fine droplets.  For optimal performance, a «flush-on-the-fly» gun tip flush system is supplied to clean the paint tips with cleaner solution and air purge. Lighter non-pressure tank design allows more paint to be carried on a chassis of equal GVWR compared to Pressure Pot units with ASME pressure tanks. When using tote tanks, loading is as simple as lifting the tote onto the deck and connecting the paint discharge directly to the diaphragm pump.

Ce contenu est une traduction automatique de la version originale anglaise.

MB |Pavement marking machine|Pumper

Partage par e-mail

Chassis

Choose from Peterbilt, Isuzu, Mack, Autocar, Battle Motors, Freightliner, or International chassis, available in single axle, single axle with lift axle, tandem axle, or tandem axle with lift axle configurations. Chassis are available with gas, diesel, or CNG fuel options to match your operational and environmental requirements. Each chassis is engineered to meet the specific needs of the striping machine, and dual steer options are available for enhanced maneuverability.
MB chassis solutions are highly customizable, allowing each unit to be configured based on your operational needs, local regulations, and preferred platform layout.

Striping Platform

Designed with operator safety and convenience in mind – The truck features multiple forms of egress, including rear steps with anti-skid material for safe access to the rear operator area. A 12" wide rear bumper provides space for mounting optional equipment such as toolboxes, hose reels, and paint manifolds. Multiple access ladders and bolt-down railings ensure safe operation and allow easy removal and replacement for servicing. The striping platform is available with diamond tread plate or smooth surface with tread tape, and can be configured in steel or aluminum to meet specific requirements.

Striping Equipment

The striping equipment features a linear bearing carriage mounted on dual outriggers for smooth, stable operation. Gun mounts accommodate air jets, paint guns, and glass guns, while multiple bead systems—including double drop and Visilo—offer versatile application options. ASME certified pressure vessels at a constant, regulated pressure provide precise paint flow to the gun tips, while integrated glass bead tanks support accurate media delivery. Air jets help clear debris to maintain clean lines. A hand painting gun is available, with or without a reel and beads. Choose between rear or mid-mount carriages featuring auto-lock stowage and optional rumble strip avoidance for smooth performance. Choose between mid-mount or rear- mount striping carriages, as well as single or dual wheel carriages, with optional rumble strip avoidance and a  selection of standard or aircraft-style wheels. The optional Visilok system also accelerates paint curing, helping reduce rying time and boost productivity.

Paint and Pump System

The Pumper style airless paint system combines low-pressure 2" diaphragm pumps for both loading and pressurizing paint, ensuring consistent delivery to the guns. Built with sanitary process paint plumbing, it simplifies daily cleaning and reduces downtime. This efficient design supports smooth operation and reliable performance across a wide range of marking applications.

Air Compressor

Reliable power on demand. Diesel-powered utility skid air compressors—including Boss 210/250 and Sullivan Pallatek 260—run on a robust 74 HP John Deere 4045D engine, delivering consistent performance with Tier 4 Final EPA compliance.

Operator Controls & Safety Systems

Operator safety and comfort are built into every detail of the system. Secure seatbelt restraints and ergonomic seating support long shifts, while optional ROPs (Roll Over Protection Systems) and available crash attenuators offer added protection in high-risk environments. A range of operator stations—including open canopy or fully enclosed climate-controlled cabs in various configurations—can be equipped with bubble windows, sliding or swinging doors. In the rear operator cab, precise control of paint and atomizing pressure gives operators the ability to fine-tune application for consistent line quality. Communication is clear and reliable with your choice of wireless or hardwired headsets.

Line application guidance/carriage steering options include hydraulic or steer-by-wire steering wheels, joysticks, or Limntech automated operator systems. Additional guidance support includes rear-view camera systems (with optional DVR for traffic recording), guidance cameras, hydraulic pointers, driver and operator lasers, and bomb sights.
Control and data logging options range from automated skip controllers and handheld remotes to full material management and reporting systems. Lighting safety features such as night lighting, strobes, and message or arrow boards ensure maximum visibility and operational safety in all conditions.

Options

A wide range of configurable options is available for the MB Pumper pavement marking machine, allowing each system to be tailored precisely to the specific needs and preferences:

  • Multiple bead systems available: Double drop and Visilok options
  • Flexible paint gun configurations available including high build double gun
  • 1-3 paint color application systems available
  • Optional «any color-any gun» paint manifold
  • Hand painting gun with or without reel and with or without beads
  • Paint heat and gun height adjuster options for superior control of paint application precision
  • Single wheel or dual wheel carriages available with optional rumble strip avoidance system and standard or aircraft style wheels
  • Optional cone setting deck, crash attenuator and toolboxes
  • Mid-mount or rear mount striping carriages available
  • Air jets to clear debris
  • Cleaning systems available for line flush and wash down
  • Guidance systems including rear view camera (with optional DVR for recording traffic), line guidance camera system with outriggers and monitor, hydraulic pointer, laser for driver, lasers for operators, bomb sight
  • Line application guidance including steering wheels (hydraulic or steer-by-wire), joysticks or Limntech automated operator systems
  • Lighting safety options including night lighting, strobes and message or arrow boards
  • Communications systems: wireless or hardwired headsets
  • Controls/data logging including skip controllers, full data recording, hand-held remote controls and variable material management systems
  • Operator stations: No cover, open canopy, climate-controlled enclosure (square cab, hi-vis cab, bay window cab - all with or without bubble windows and choices of sliding or swinging doors) with or without ROPs system

Customized solutions

MB Pavement specializes in engineering fully customized solutions—designed from the ground up to match each customer’s specific operational needs. From machine layout to specialized components, every detail is adapted to ensure that your pavement marking machine aligns seamlessly with your workflow, vehicle platform, and performance expectations.
