Schmidt | CSP 1600 VES
Sprayer| Numéro de l'offre: | UM2637137 |
| Marque | Schmidt |
| Numéro de matériau: | 1269780-6 |
| Année de fabrication: | 2017 |
| Numéro de série: | CSP31115 |
| Utilisation (h): | 100 h |
| Classe d’état: | Class 4 |
| Couleur: | deep orange |
| Site: | Germany 79837 St. Blasien |
| Disponibilité: | 30 Jan 2023 |
| Prix: | On request |
Détails de la machine

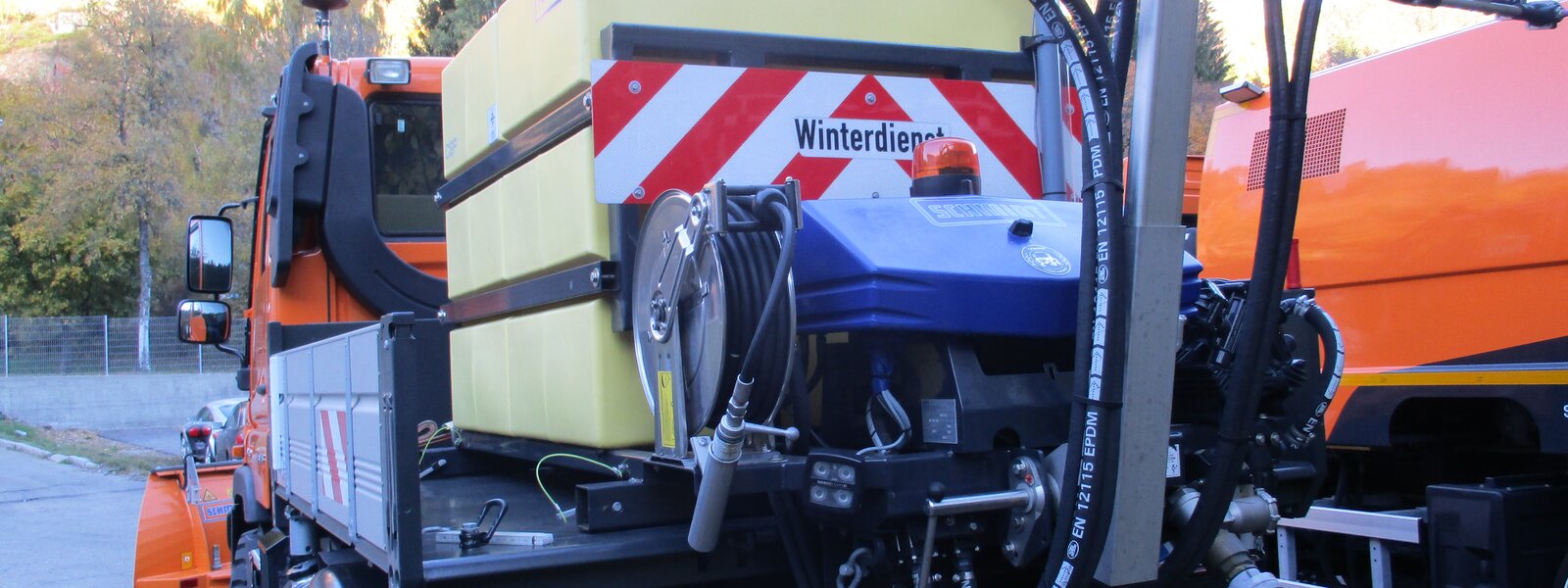

The sprayer / de- icer tank capacity of 1`600 liter The CSP's use of liquid de-icing agents is an alternative to potentially environmentally-harmful gritting agents. In dry or slightly humid conditions, and at temperatures down to -6°, this method is particularly suitable for municipal winter road clearance services when consumption of de-icing agents needs to be drastically reduced.
Équipement
| Base machine | |
|---|---|
| 984376 | compact sprayer CSP 1600 (U300k platform) |
| Liquid modules | |
|---|---|
| 912321 | wet salt coupling Storz 2" |
| 188273 | float switch maximum level, 4-pin |
| 991673 | check valve (option for Storz 2") |
| 328498 | float switch min. level (optical and acoustic signal, pump shut-off) Automatic shut-off of water pump in case of dry running |
| Drive | |
|---|---|
| 180468 | Drive via vehicle hydraulics, 35 l/min required |
| 918914 | Hydraulic couplings U2 U300-U500 from 01.07.2009, ISO16028 P=Gr.19(F) R=Gr.19(M) |
| Steering | |
|---|---|
| 270408 | Evolution Smart "ES" control system, with color touch screen |
| 636543 | GPS/Glonass module (for EP and ES) |
| 941686 | USB memory module (for EP and ES) |
| 515636 | RS232/plough signal interface (with 19-pin control panel cable EP/ES) |
| 423554 | Harness disconnect for control wires behind cab. standard version |
| 333195 | Control panel holder EC/EP/ES Unimog Euro 6 (DH3) |
| Spray system | |
|---|---|
| 100457 | Dual row of nozzles |
| 438459 | Scatter control via LED lamp (red or white) |
| 135394 | Hand sprayer with hose reel/stainless 15m 12/24V |
| Storage and fastening parts | |
|---|---|
| 425367 | Base frame for platform body |
| 554836 | storage feet (4 pcs.) 3 t. Load capacity, crank mechanism in the middle (for KR and Basic) |
| 192026 | Platform clamping system Unimog (up to 4 m³) |
| Special equipment | |
|---|---|
| 440333 | Rotating beacon with LED lamp |
| 300906 | Red and white warning film, on the rear of the machine |
| 995056 | Marking "Winter service" (German) |
| 356939 | Splash guard 2,000 mm |
